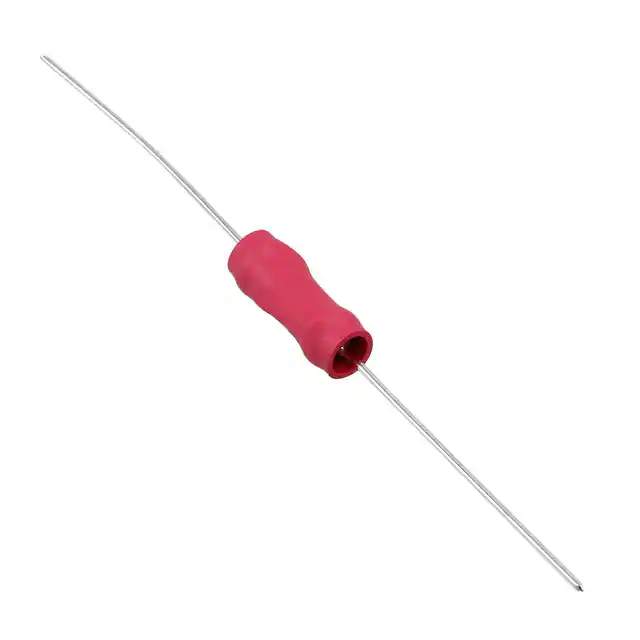

| Part Number | IHD1ER221L | IHD3ER221L | IHD1ER222L | IHD1ER821L | IHD1EB221L | IHD1ER220L |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 220 µH | 220 µH | 2.2 mH | 820 µH | 220 µH | 22 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 700 mA | 1.6 A | 240 mA | 360 mA | 700 mA | 2.2 A |
| Current - Saturation (Isat) | 490mA | 1.2A | 160mA | 260mA | 490mA | 1.5A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 505mOhm Max | 162mOhm Max | 4.4Ohm Max | 1.98Ohm Max | 505mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
