Please send RFQ , we will respond immediately.

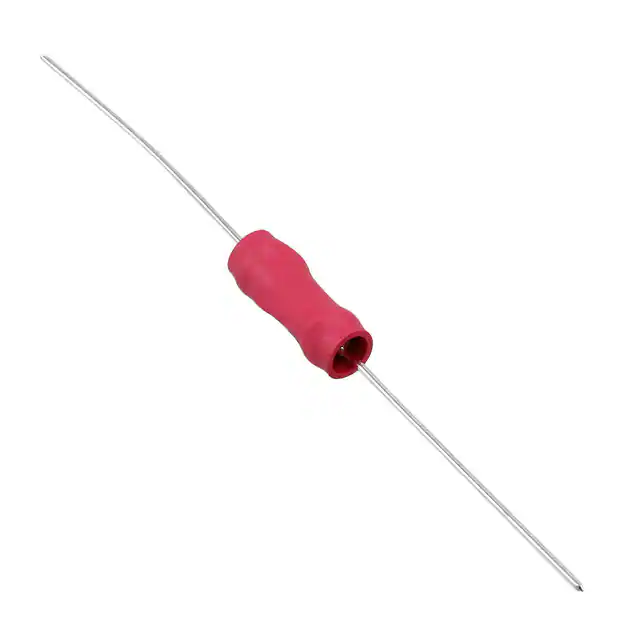

| Part Number | IHD1ER180L | IHD1ER1R0L | IHD1ER680L | IHD1ER183L | IHD1EB180L | IHD1ER100L |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 18 µH | 1 µH | 68 µH | 18 mH | 18 µH | 10 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 2.4 A | 5.3 A | 1.3 A | 80 mA | 2.4 A | 2.8 A |
| Current - Saturation (Isat) | 1.7A | 7A | 880mA | 60mA | 1.7A | 2.3A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 44mOhm Max | 9mOhm Max | 145mOhm Max | 40Ohm Max | 44mOhm Max | 33mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
