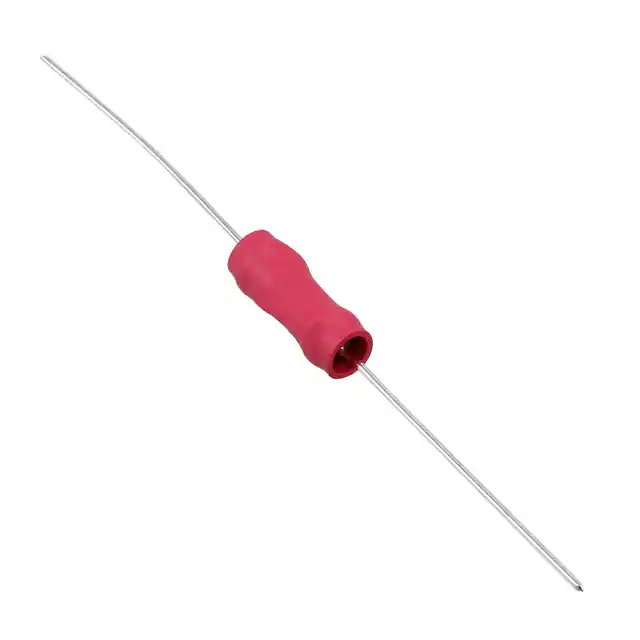

| Part Number | IHD1EB822L | IHD1ER822L | IHD3EB822L | IHD1EB8R2L | IHD1EB122L | IHD1EB222L | IHD1EB820L | IHD1EB821L |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 8.2 mH | 8.2 mH | 8.2 mH | 8.2 µH | 1.2 mH | 2.2 mH | 82 µH | 820 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 110 mA | 110 mA | 250 mA | 3 A | 310 mA | 240 mA | 1.3 A | 360 mA |
| Current - Saturation (Isat) | 80mA | 80mA | 200mA | 2.5A | 210mA | 160mA | 800mA | 260mA |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 20.8Ohm Max | 20.8Ohm Max | 6.44Ohm Max | 28mOhm Max | 2.55Ohm Max | 4.4Ohm Max | 152mOhm Max | 1.98Ohm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
