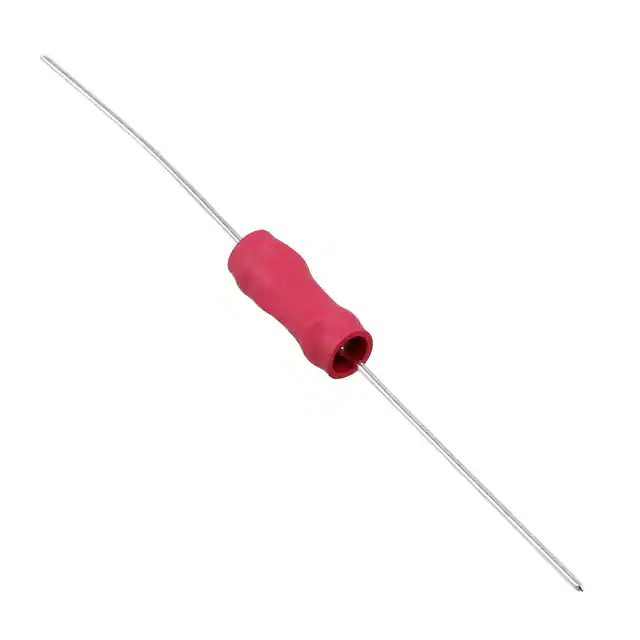

| Part Number | IHD1EB1R2L | IHD1EB2R2L | IHD1EB1R8L | IHD1EB1R5L | IHD1EB8R2L | IHD1EB102L | IHD1EB122L | IHD1EB152L | IHD1EB182L | IHD1EB1R0L |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 1.2 µH | 2.2 µH | 1.8 µH | 1.5 µH | 8.2 µH | 1 mH | 1.2 mH | 1.5 mH | 1.8 mH | 1 µH |
| Tolerance | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% | ±15% |
| Current Rating (Amps) | 5 A | 4.4 A | 4.6 A | 4.8 A | 3 A | 330 mA | 310 mA | 290 mA | 250 mA | 5.3 A |
| Current - Saturation (Isat) | 6.4A | 4.7A | 5.2A | 5.7A | 2.5A | 230mA | 210mA | 190mA | 180mA | 7A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 13mOhm Max | 12mOhm Max | 11mOhm Max | 28mOhm Max | 2.3Ohm Max | 2.55Ohm Max | 3Ohm Max | 4Ohm Max | 9mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.85mm x 17.78mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
