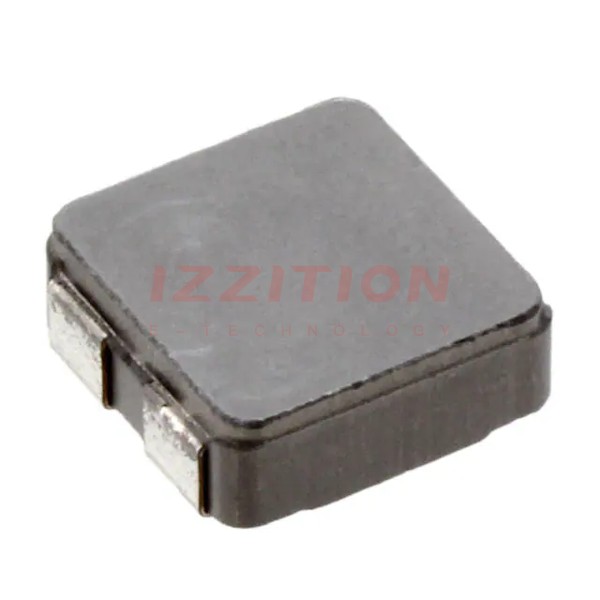

| Part Number | IHCL4040DZER2R7M5A | IHCL4040DZER4R7M5A | IHCL4040DZER2R2M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Number of Coils | 2 | 2 | 2 |
| Inductance - Connected In Parallel | - | - | - |
| Inductance - Connected In Series | - | - | - |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating - Parallel | - | - | - |
| Current Rating - Series | - | - | - |
| Current Saturation - Parallel | - | - | - |
| Current Saturation - Series | - | - | - |
| DC Resistance (DCR) - Parallel | - | - | - |
| DC Resistance (DCR) - Series | - | - | - |
| Shielding | Shielded | Shielded | Shielded |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Size / Dimension | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.420" L x 0.400" W (10.67mm x 10.16mm) |
| Height | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
