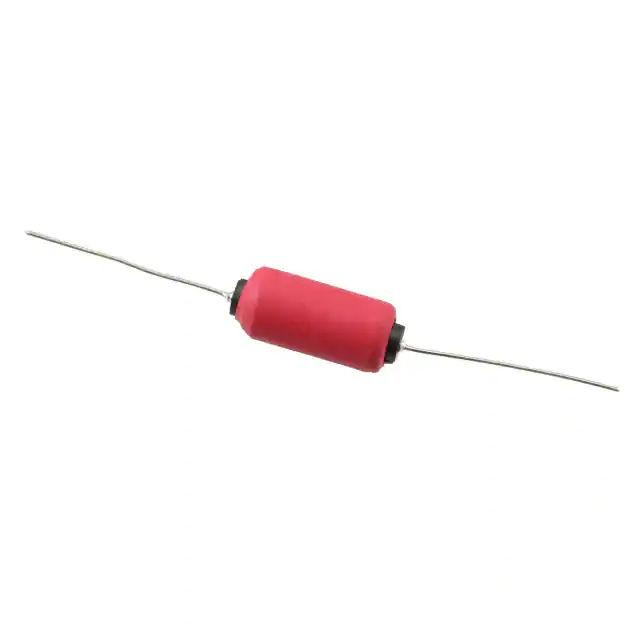

| Part Number | IHA501BA | IHA505BA | IHA502BA | IHA503BA | IHA504BA | IHA101BA | IHA201BA | IHA301BA |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 5 µH | 100 µH | 10 µH | 27 µH | 50 µH | 50 µH | 27 µH | 5 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 9.3 A | 5.9 A | 8.3 A | 6.5 A | 6.1 A | 2.5 A | 3.7 A | 6.8 A |
| Current - Saturation (Isat) | - | - | - | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 10mOhm Max | 60mOhm Max | 15mOhm Max | 30mOhm Max | 40mOhm Max | 120mOhm Max | 60mOhm Max | 15mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | 0.700" Dia x 1.300" L (17.78mm x 33.02mm) | 0.475" Dia x 1.050" L (12.07mm x 26.67mm) | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) | 0.500" Dia x 0.800" L (12.70mm x 20.32mm) | 0.475" Dia x 0.800" L (12.07mm x 20.32mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
