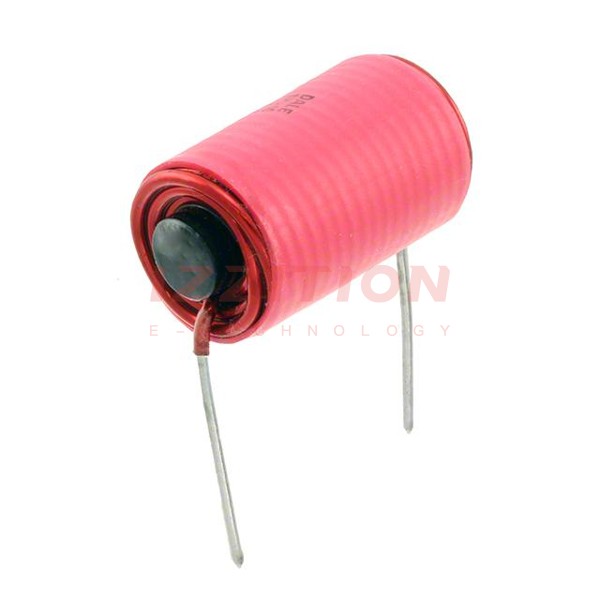

| Part Number | IH10BQ500K | IH10BQ5R0K | IH10BQ100K |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 50 µH | 5 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 11 A | 19 A | 16 A |
| Current - Saturation (Isat) | 10A | 25A | 19A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 25mOhm Max | 10mOhm Max | 12mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) | 0.635" Dia x 1.125" L (16.13mm x 28.58mm) | 0.635" Dia x 1.375" L (16.13mm x 34.93mm) |
| Height - Seated (Max) | - | - | - |
