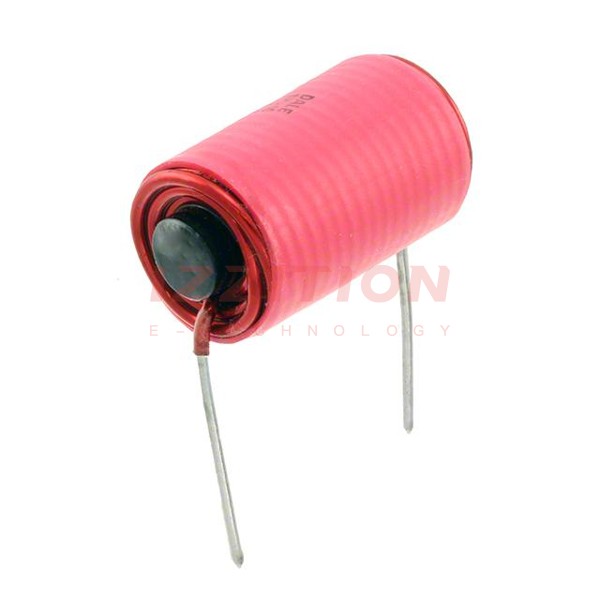

| Part Number | IH10BQ100K | IH10BQ101K | IH10BQ500K |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 10 µH | 100 µH | 50 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 16 A | 10 A | 11 A |
| Current - Saturation (Isat) | 19A | 7A | 10A |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 12mOhm Max | 30mOhm Max | 25mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder | Radial, Horizontal Cylinder |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.635" Dia x 1.375" L (16.13mm x 34.93mm) | 0.935" Dia x 1.625" L (23.75mm x 41.28mm) | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) |
| Height - Seated (Max) | - | - | - |
