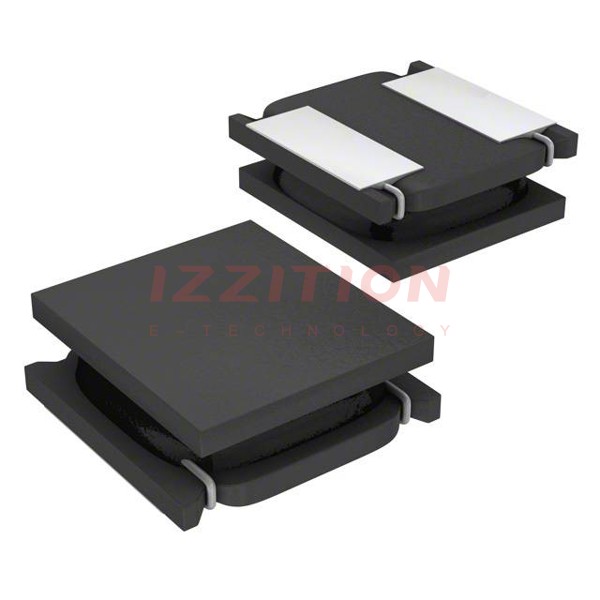

| Part Number | IFSC1111AZER3R3M01 | IFSC1111ABER3R3M01 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 1.2 A | 1.7 A |
| Current - Saturation (Isat) | 900mA | 1.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 150mOhm Max | 120mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.114" L x 0.114" W (2.90mm x 2.90mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.051" (1.30mm) |
