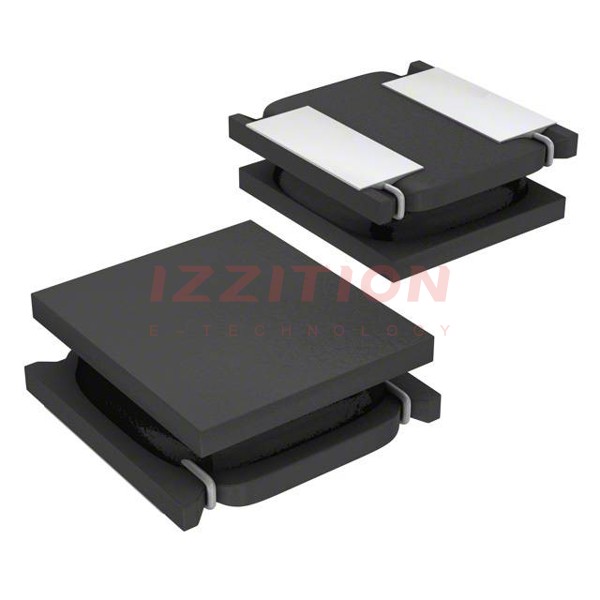

| Part Number | IFSC1111AZER1R0M01 | IFSC1111AZER1R5M01 | IFSC1111AZER100M01 | IFSC1111AZER150M01 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | - |
| Material - Core | - | - | - | - |
| Inductance | 1 µH | 1.5 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2 A | 1.45 A | 800 mA | 650 mA |
| Current - Saturation (Isat) | 1.5A | 1.35A | 520mA | 400mA |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 68mOhm Max | 75mOhm Max | 340mOhm Max | 570mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.117" L x 0.117" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
