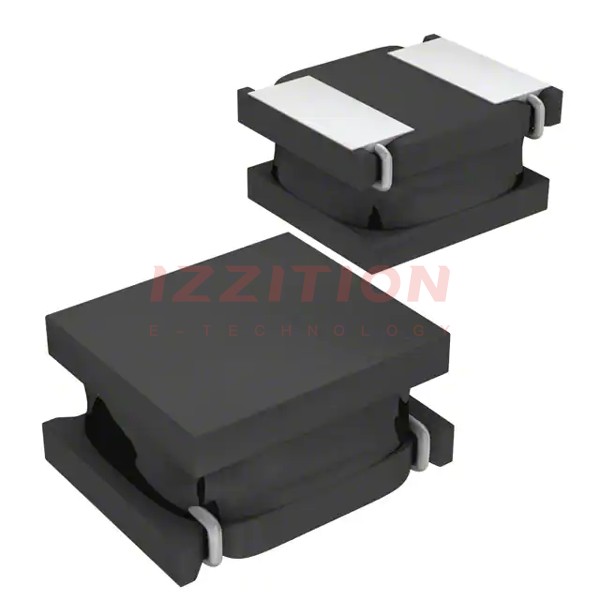

| Part Number | IFSC0806AZER1R0M01 | IFSC0806AZER1R5M01 | IFSC0806AZER100M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 1 µH | 1.5 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.6 A | 1.4 A | 450 mA |
| Current - Saturation (Isat) | 1.88A | 1.63A | 620mA |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 115mOhm Max | 172mOhm Max | 1.33Ohm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
