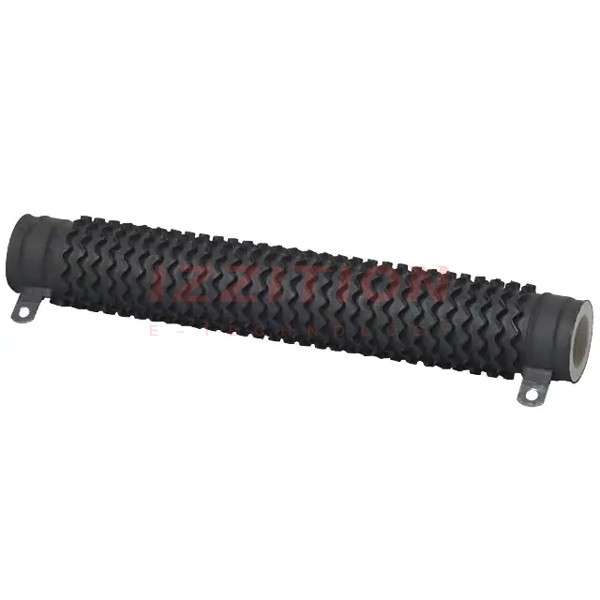

| Part Number | HLZ30007Z8R000KJ | HLZ30007Z1R000KJ | HLZ30007Z5R000KJ |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete |
| Resistance | 8 Ohms | 1 Ohms | 5 Ohms |
| Tolerance | ±10% | ±10% | ±10% |
| Power (Watts) | 300W | 300W | 300W |
| Composition | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Features | - | - | - |
| Coating, Housing Type | Silicone Coated | Silicone Coated | Silicone Coated |
| Mounting Feature | Brackets (not included) | Brackets (not included) | Brackets (not included) |
| Size / Dimension | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) | 1.125" Dia x 8.500" L (28.58mm x 215.90mm) |
| Height - Seated (Max) | - | - | - |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Radial, Tubular | Radial, Tubular | Radial, Tubular |
| Failure Rate | - | - | - |
