Please send RFQ , we will respond immediately.

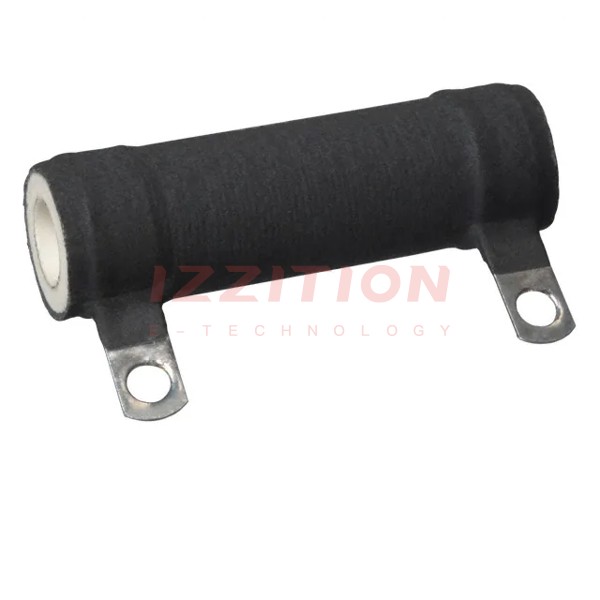

| Part Number | HL22507Z5R000JJ | HL22507Z1R000JJ | HL22507Z2R000JJ | HL22507Z3R000JJ | HL22507Z5K000JJ |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 5 Ohms | 1 Ohms | 2 Ohms | 3 Ohms | 5 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 225W | 225W | 225W | 225W | 225W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±30ppm/°C |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Coating, Housing Type | Silicone Coated | Silicone Coated | Silicone Coated | Silicone Coated | Silicone Coated |
| Mounting Feature | Brackets (not included) | Brackets (not included) | Brackets (not included) | Brackets (not included) | Brackets (not included) |
| Size / Dimension | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) | 1.125" Dia x 10.500" L (28.58mm x 266.70mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Radial, Tubular | Radial, Tubular | Radial, Tubular | Radial, Tubular | Radial, Tubular |
| Failure Rate | - | - | - | - | - |
