HL22507Z500R0JJ
  • Share:

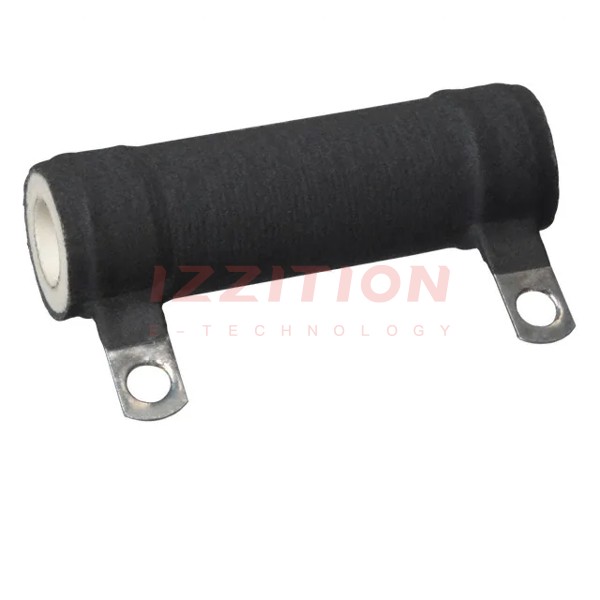

Vishay Dale HL22507Z500R0JJ

Manufacturer No:
HL22507Z500R0JJ
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
HL22507Z500R0JJ Datasheet
ECAD Model:
-
Description:
RES CHAS MNT 500 OHM 5% 225W
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:500 Ohms
Tolerance:±5%
Power (Watts):225W
Composition:Wirewound
Temperature Coefficient:±30ppm/°C
Operating Temperature:-55°C ~ 350°C
Features:Moisture Resistant
Coating, Housing Type:Silicone Coated
Mounting Feature:Brackets (not included)
Size / Dimension:1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max):-
Lead Style:Solder Lugs
Package / Case:Radial, Tubular
Failure Rate:-
0 Remaining View Similar

In Stock

-
429

Please send RFQ , we will respond immediately.

Similar Products

Part Number HL22507Z500R0JJ HL22507Z100R0JJ   HL22507Z200R0JJ
Manufacturer Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete
Resistance 500 Ohms 100 Ohms 200 Ohms
Tolerance ±5% ±5% ±5%
Power (Watts) 225W 225W 225W
Composition Wirewound Wirewound Wirewound
Temperature Coefficient ±30ppm/°C ±30ppm/°C ±30ppm/°C
Operating Temperature -55°C ~ 350°C -55°C ~ 350°C -55°C ~ 350°C
Features Moisture Resistant Moisture Resistant Moisture Resistant
Coating, Housing Type Silicone Coated Silicone Coated Silicone Coated
Mounting Feature Brackets (not included) Brackets (not included) Brackets (not included)
Size / Dimension 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max) - - -
Lead Style Solder Lugs Solder Lugs Solder Lugs
Package / Case Radial, Tubular Radial, Tubular Radial, Tubular
Failure Rate - - -
