HL22507Z3R000JJ
  • Share:

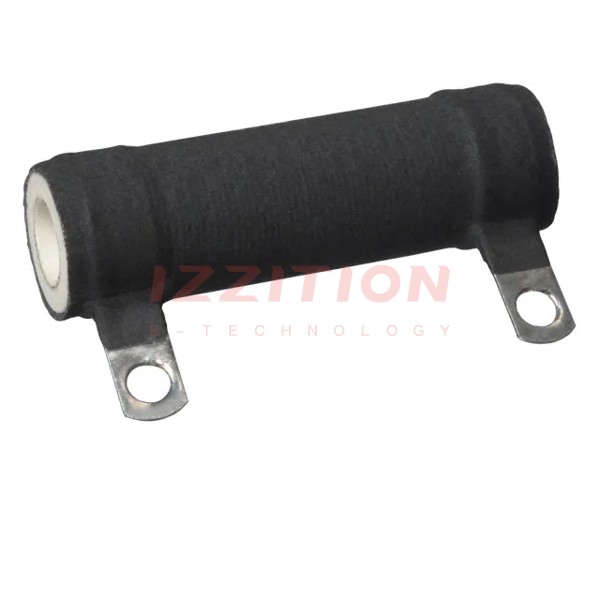

Vishay Dale HL22507Z3R000JJ

Manufacturer No:
HL22507Z3R000JJ
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
HL22507Z3R000JJ Datasheet
ECAD Model:
-
Description:
RES CHAS MNT 3 OHM 5% 225W
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:3 Ohms
Tolerance:±5%
Power (Watts):225W
Composition:Wirewound
Temperature Coefficient:±50ppm/°C
Operating Temperature:-55°C ~ 350°C
Features:Moisture Resistant
Coating, Housing Type:Silicone Coated
Mounting Feature:Brackets (not included)
Size / Dimension:1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max):-
Lead Style:Solder Lugs
Package / Case:Radial, Tubular
Failure Rate:-
0 Remaining View Similar

In Stock

-
455

Please send RFQ , we will respond immediately.

Similar Products

Part Number HL22507Z3R000JJ HL22507Z5R000JJ   HL22507Z1R000JJ   HL22507Z2R000JJ
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete
Resistance 3 Ohms 5 Ohms 1 Ohms 2 Ohms
Tolerance ±5% ±5% ±5% ±5%
Power (Watts) 225W 225W 225W 225W
Composition Wirewound Wirewound Wirewound Wirewound
Temperature Coefficient ±50ppm/°C ±50ppm/°C ±50ppm/°C ±50ppm/°C
Operating Temperature -55°C ~ 350°C -55°C ~ 350°C -55°C ~ 350°C -55°C ~ 350°C
Features Moisture Resistant Moisture Resistant Moisture Resistant Moisture Resistant
Coating, Housing Type Silicone Coated Silicone Coated Silicone Coated Silicone Coated
Mounting Feature Brackets (not included) Brackets (not included) Brackets (not included) Brackets (not included)
Size / Dimension 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm) 1.125" Dia x 10.500" L (28.58mm x 266.70mm)
Height - Seated (Max) - - - -
Lead Style Solder Lugs Solder Lugs Solder Lugs Solder Lugs
Package / Case Radial, Tubular Radial, Tubular Radial, Tubular Radial, Tubular
Failure Rate - - - -
