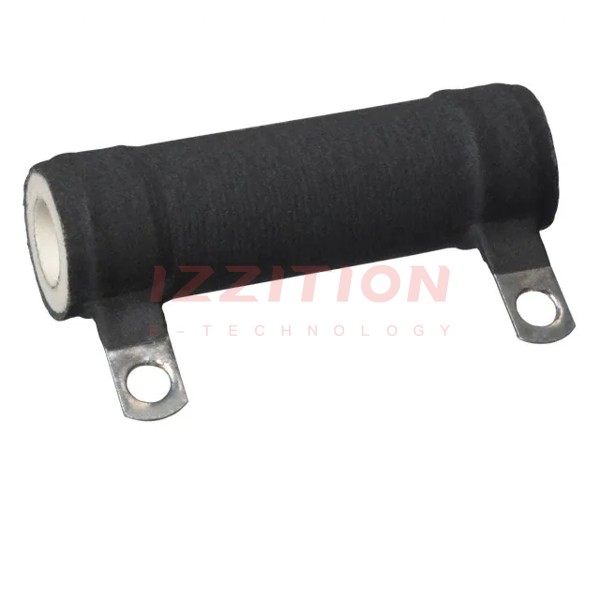

| Part Number | HL02506Z1R000JJ | HL02506Z2R000JJ | HL02506Z3R000JJ | HL02506Z5R000JJ | HL02506Z1K000JJ |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 1 Ohms | 2 Ohms | 3 Ohms | 5 Ohms | 1 kOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 25W | 25W | 25W | 25W | 25W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Temperature Coefficient | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±30ppm/°C |
| Operating Temperature | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C | -55°C ~ 350°C |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Coating, Housing Type | Silicone Coated | Silicone Coated | Silicone Coated | Silicone Coated | Silicone Coated |
| Mounting Feature | Brackets (not included) | Brackets (not included) | Brackets (not included) | Brackets (not included) | Brackets (not included) |
| Size / Dimension | 0.563" Dia x 2.000" L (14.29mm x 50.80mm) | 0.563" Dia x 2.000" L (14.29mm x 50.80mm) | 0.563" Dia x 2.000" L (14.29mm x 50.80mm) | 0.563" Dia x 2.000" L (14.29mm x 50.80mm) | 0.563" Dia x 2.000" L (14.29mm x 50.80mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Lead Style | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs | Solder Lugs |
| Package / Case | Radial, Tubular | Radial, Tubular | Radial, Tubular | Radial, Tubular | Radial, Tubular |
| Failure Rate | - | - | - | - | - |
