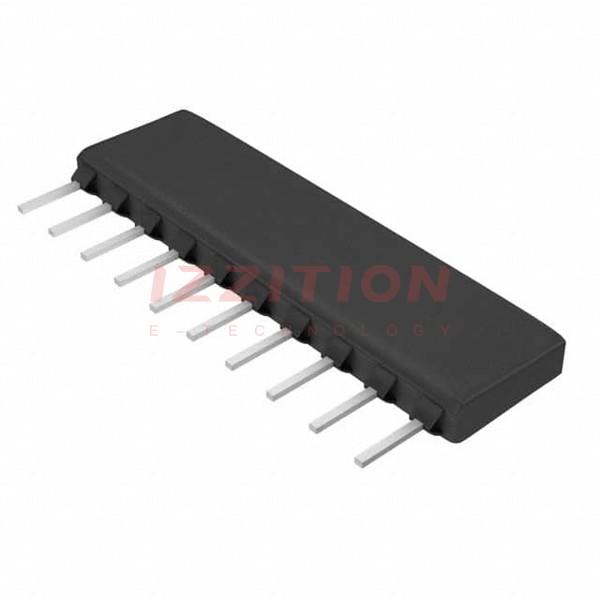

| Part Number | CSC10B014K70GPA | CSC11B014K70GPA | CSC12B014K70GPA | CSC10A014K70GPA |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 4.7k | 4.7k | 4.7k | 4.7k |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 10 | 11 | 9 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 10 | 11 | 12 | 10 |
| Power Per Element | 250mW | 250mW | 250mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 11-SIP | 12-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 11-SIP | 12-SIP | 10-SIP |
| Size / Dimension | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 1.090" L x 0.098" W (27.69mm x 2.49mm) | 1.190" L x 0.098" W (30.23mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.195" (4.95mm) |
