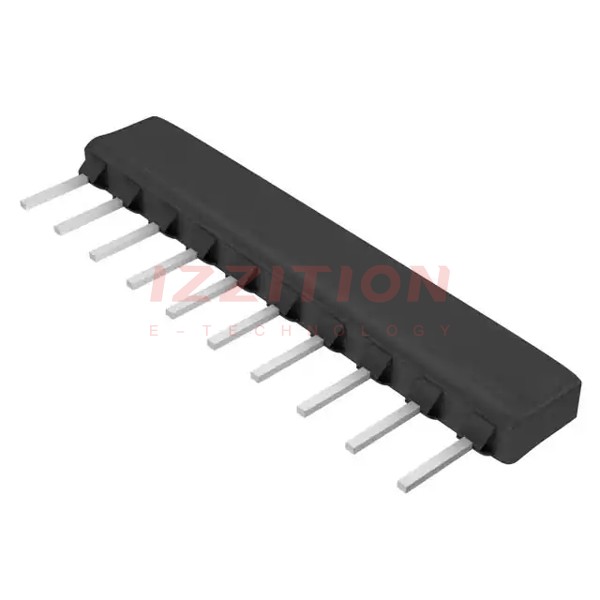

| Part Number | CSC10A03100KGPA | CSC10A03100RGPA | CSC10A03180KGPA | CSC10A01100KGPA |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated | Bussed |
| Resistance (Ohms) | 100k | 100 | 180k | 100k |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 5 | 5 | 5 | 9 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 10 | 10 | 10 | 10 |
| Power Per Element | 300mW | 300mW | 300mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
