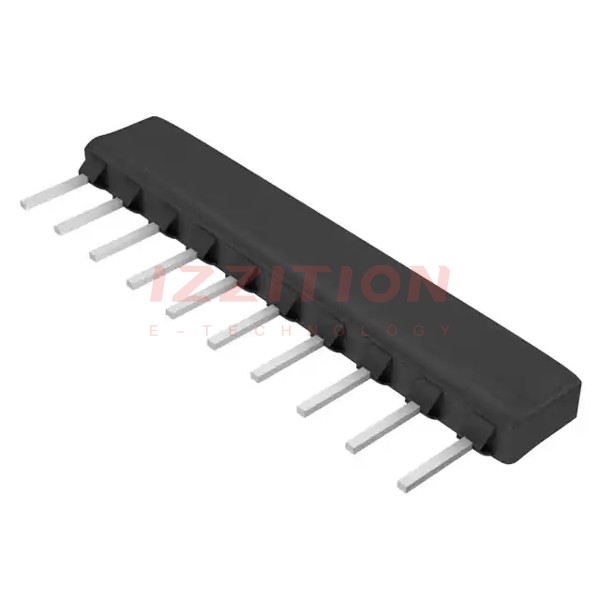

| Part Number | CSC10A011K00GPA | CSC10A011K20GPA | CSC10A011K50GPA | CSC10A011M00GPA | CSC10A012K00GPA | CSC10A031K00GPA | CSC10B011K00GPA |
|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed | Bussed | Bussed | Isolated | Bussed |
| Resistance (Ohms) | 1K | 1.2k | 1.5k | 1M | 2K | 1K | 1K |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 9 | 9 | 9 | 9 | 9 | 5 | 9 |
| Resistor Matching Ratio | - | - | - | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Per Element | 200mW | 200mW | 200mW | 200mW | 200mW | 300mW | 250mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Supplier Device Package | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP | 10-SIP |
| Size / Dimension | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) | 0.990" L x 0.098" W (25.15mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.295" (7.50mm) |
