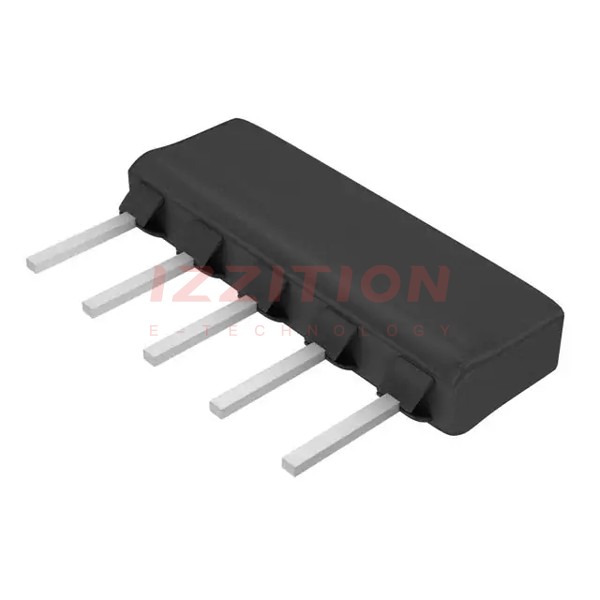

| Part Number | CSC05A013K30GPA | CSC06A013K30GPA | CSC08A013K30GPA |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Circuit Type | Bussed | Bussed | Bussed |
| Resistance (Ohms) | 3.3k | 3.3k | 3.3k |
| Tolerance | ±2% | ±2% | ±2% |
| Number of Resistors | 4 | 5 | 7 |
| Resistor Matching Ratio | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 5 | 6 | 8 |
| Power Per Element | 200mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 5-SIP | 6-SIP | 8-SIP |
| Supplier Device Package | 5-SIP | 6-SIP | 8-SIP |
| Size / Dimension | 0.490" L x 0.098" W (12.45mm x 2.49mm) | 0.590" L x 0.098" W (14.99mm x 2.49mm) | 0.790" L x 0.098" W (20.07mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
