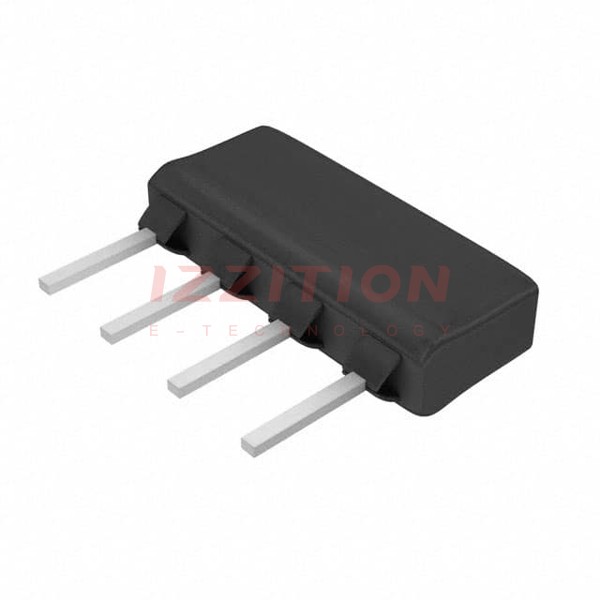

| Part Number | CSC04A011M00GPA | CSC04A031M00GPA | CSC05A011M00GPA | CSC04A011K00GPA |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Circuit Type | Bussed | Isolated | Bussed | Bussed |
| Resistance (Ohms) | 1M | 1M | 1M | 1K |
| Tolerance | ±2% | ±2% | ±2% | ±2% |
| Number of Resistors | 3 | 2 | 4 | 3 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C | ±50ppm/°C |
| Number of Pins | 4 | 4 | 5 | 4 |
| Power Per Element | 200mW | 300mW | 200mW | 200mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Applications | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 4-SIP | 4-SIP | 5-SIP | 4-SIP |
| Supplier Device Package | 4-SIP | 4-SIP | 5-SIP | 4-SIP |
| Size / Dimension | 0.390" L x 0.098" W (9.91mm x 2.49mm) | 0.390" L x 0.098" W (9.91mm x 2.49mm) | 0.490" L x 0.098" W (12.45mm x 2.49mm) | 0.390" L x 0.098" W (9.91mm x 2.49mm) |
| Height - Seated (Max) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) | 0.195" (4.95mm) |
