Please send RFQ , we will respond immediately.

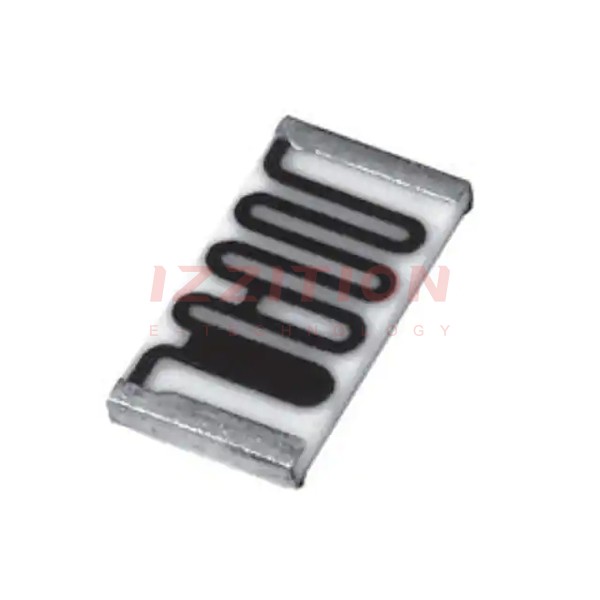

| Part Number | CRHA2512AF100MFKEF | CRHA2512AF500MFKEF | CRHA2512AF200MFKEF |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Resistance | 100 mOhms | 500 mOhms | 200 mOhms |
| Tolerance | ±1% | ±1% | ±1% |
| Power (Watts) | 1W | 1W | 1W |
| Composition | Thick Film | Thick Film | Thick Film |
| Features | Automotive AEC-Q200, High Voltage | Automotive AEC-Q200, High Voltage | Automotive AEC-Q200, High Voltage |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Package / Case | 2512 (6432 Metric) | 2512 (6432 Metric) | 2512 (6432 Metric) |
| Supplier Device Package | - | - | 2512 |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.250" L x 0.126" W (6.35mm x 3.20mm) | 0.250" L x 0.126" W (6.35mm x 3.20mm) |
| Height - Seated (Max) | 0.029" (0.74mm) | 0.029" (0.74mm) | 0.029" (0.74mm) |
| Number of Terminations | 2 | 2 | 2 |
| Failure Rate | - | - | - |
