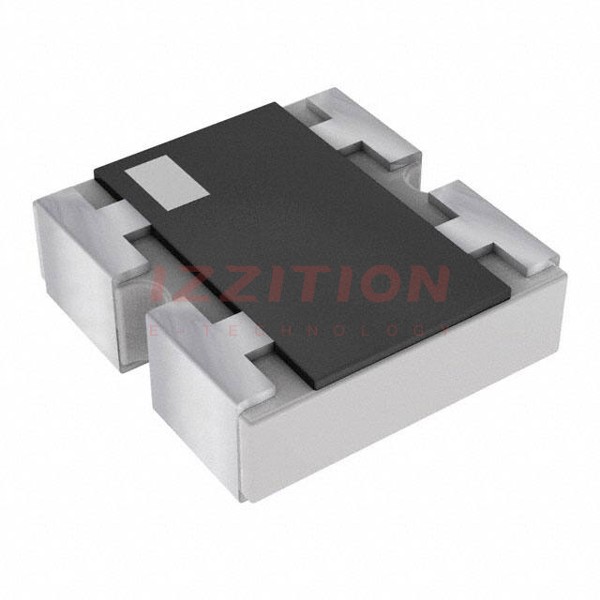

| Part Number | CRASN20K0F1K00TA | CRASN20K0F1K05TA | CRASN20K0F2K00TA | CRASA20K0F1K00TA |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 1k, 20k | 1.05k, 20k | 2k, 20k | 1k, 20k |
| Tolerance | ±1% | ±1% | ±1% | ±1% |
| Number of Resistors | 2 | 2 | 2 | 4 |
| Resistor Matching Ratio | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - |
| Number of Pins | 4 | 4 | 4 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) | Automotive AEC-Q200, Voltage Divider (TCR Matched) | Automotive AEC-Q200, Voltage Divider (TCR Matched) | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0606, Convex | 0606, Convex | 0606, Convex | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 0606 | 0606 | 0606 | - |
| Size / Dimension | 0.063" L x 0.059" W (1.60mm x 1.50mm) | 0.063" L x 0.059" W (1.60mm x 1.50mm) | 0.063" L x 0.059" W (1.60mm x 1.50mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) | 0.024" (0.60mm) |
