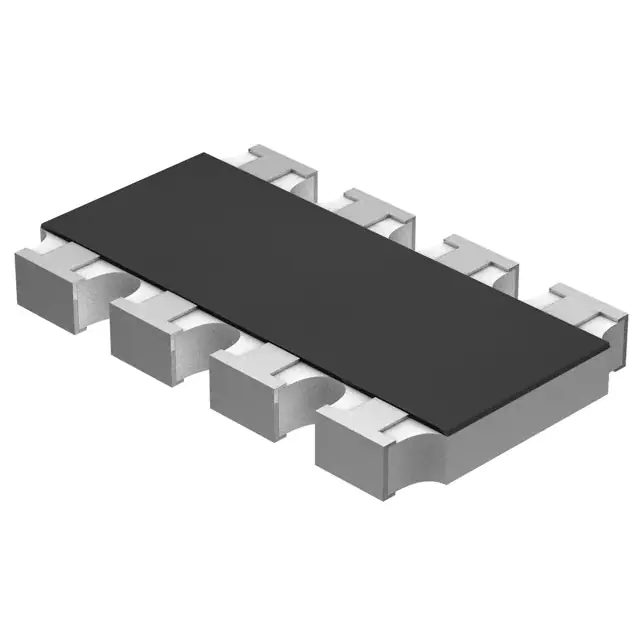

| Part Number | CRA12E083560RJTR | CRA12E083160RJTR | CRA12E083360RJTR | CRA12E083510RJTR | CRA12E083560KJTR |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 560 | 160 | 360 | 510 | 560k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 8 | 8 | 8 | 8 | 8 |
| Power Per Element | 125mW | 125mW | 125mW | 125mW | 125mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Applications | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2012, Convex, Long Side Terminals | 2012, Convex, Long Side Terminals | 2012, Convex, Long Side Terminals | 2012, Convex, Long Side Terminals | 2012, Convex, Long Side Terminals |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.200" L x 0.120" W (5.08mm x 3.05mm) | 0.200" L x 0.120" W (5.08mm x 3.05mm) | 0.200" L x 0.120" W (5.08mm x 3.05mm) | 0.200" L x 0.120" W (5.08mm x 3.05mm) | 0.200" L x 0.120" W (5.08mm x 3.05mm) |
| Height - Seated (Max) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) | 0.028" (0.70mm) |
