CRA06S04315R0JTA
  • Share:

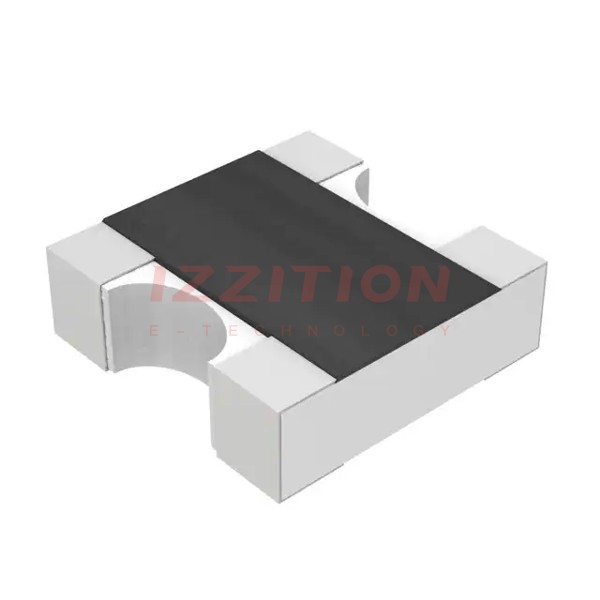

Vishay Dale CRA06S04315R0JTA

Manufacturer No:
CRA06S04315R0JTA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
CRA06S04315R0JTA Datasheet
ECAD Model:
-
Description:
RES ARRAY 2 RES 15 OHM 0606
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Isolated
Resistance (Ohms):15
Tolerance:±5%
Number of Resistors:2
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:4
Power Per Element:62.5mW
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Applications:-
Mounting Type:Surface Mount
Package / Case:0606, Convex
Supplier Device Package:-
Size / Dimension:0.063" L x 0.059" W (1.60mm x 1.50mm)
Height - Seated (Max):0.024" (0.60mm)
0 Remaining View Similar

In Stock

-
258

Please send RFQ , we will respond immediately.

Similar Products

Part Number CRA06S04315R0JTA CRA06S04316R0JTA   CRA06S04318R0JTA   CRA06S04310R0JTA   CRA06S04311R0JTA   CRA06S04312R0JTA   CRA06S04313R0JTA   CRA06S04315K0JTA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Circuit Type Isolated Isolated Isolated Isolated Isolated Isolated Isolated Isolated
Resistance (Ohms) 15 16 18 10 11 12 13 15k
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Number of Resistors 2 2 2 2 2 2 2 2
Resistor Matching Ratio - - - - - - - -
Resistor-Ratio-Drift - - - - - - - -
Number of Pins 4 4 4 4 4 4 4 4
Power Per Element 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Applications - - - - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 0606, Convex 0606, Convex 0606, Convex 0606, Convex 0606, Convex 0606, Convex 0606, Convex 0606, Convex
Supplier Device Package - - - - - - - -
Size / Dimension 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm)
Height - Seated (Max) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm) 0.024" (0.60mm)
