CRA06P04322R0JTA
  • Share:

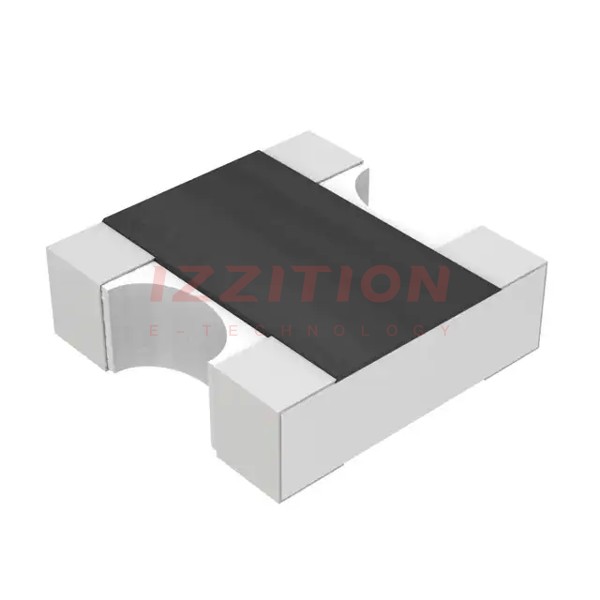

Vishay Dale CRA06P04322R0JTA

Manufacturer No:
CRA06P04322R0JTA
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
CRA06P04322R0JTA Datasheet
ECAD Model:
-
Description:
RES ARRAY 2 RES 22 OHM 0606
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Isolated
Resistance (Ohms):22
Tolerance:±5%
Number of Resistors:2
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:4
Power Per Element:62.5mW
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Applications:-
Mounting Type:Surface Mount
Package / Case:0606, Concave
Supplier Device Package:-
Size / Dimension:0.063" L x 0.063" W (1.60mm x 1.60mm)
Height - Seated (Max):0.028" (0.70mm)
0 Remaining View Similar

In Stock

-
346

Please send RFQ , we will respond immediately.

Similar Products

Part Number CRA06P04322R0JTA CRA06P04324R0JTA   CRA06P04327R0JTA   CRA06P04362R0JTA   CRA06P04382R0JTA   CRA06P04312R0JTA   CRA06P04320R0JTA   CRA06P04322K0JTA
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Circuit Type Isolated Isolated Isolated Isolated Isolated Isolated Isolated Isolated
Resistance (Ohms) 22 24 27 62 82 12 20 22k
Tolerance ±5% ±5% ±5% ±5% ±5% ±5% ±5% ±5%
Number of Resistors 2 2 2 2 2 2 2 2
Resistor Matching Ratio - - - - - - - -
Resistor-Ratio-Drift - - - - - - - -
Number of Pins 4 4 4 4 4 4 4 4
Power Per Element 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW 62.5mW
Temperature Coefficient ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C ±200ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Applications - - - - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 0606, Concave 0606, Concave 0606, Concave 0606, Concave 0606, Concave 0606, Concave 0606, Concave 0606, Concave
Supplier Device Package - - - - - - - -
Size / Dimension 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.063" L x 0.063" W (1.60mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm) 0.028" (0.70mm)
