Please send RFQ , we will respond immediately.

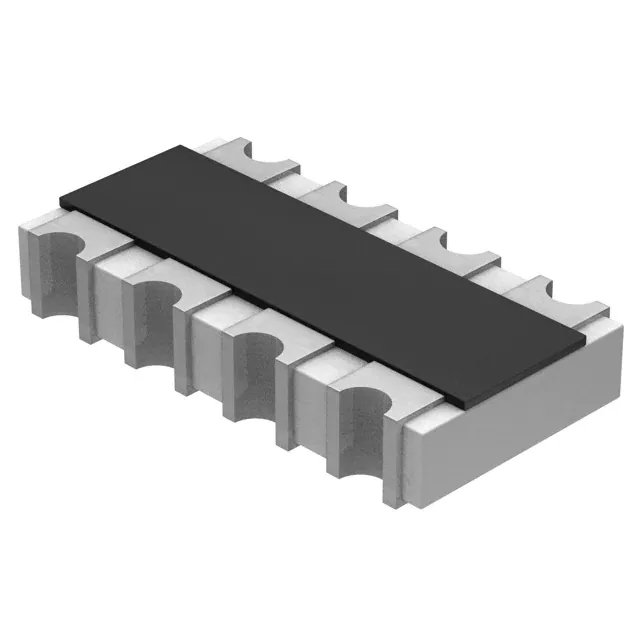

| Part Number | CRA04P083430RJTD | CRA04P083470RJTD | CRA04P083130RJTD | CRA04P083330RJTD | CRA04P083430KJTD |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Circuit Type | Isolated | Isolated | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 430 | 470 | 130 | 330 | 430k |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Number of Resistors | 4 | 4 | 4 | 4 | 4 |
| Resistor Matching Ratio | - | - | - | - | - |
| Resistor-Ratio-Drift | - | - | - | - | - |
| Number of Pins | 8 | 8 | 8 | 8 | 8 |
| Power Per Element | 62.5mW | 62.5mW | 62.5mW | 62.5mW | 62.5mW |
| Temperature Coefficient | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C | ±200ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Applications | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals | 0804, Concave, Long Side Terminals |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.079" L x 0.039" W (2.00mm x 1.00mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
