CPSM055R000JE31
  • Share:

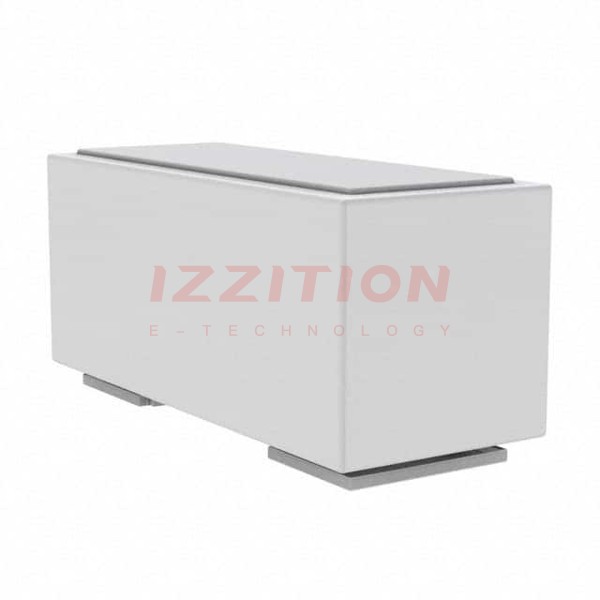

Vishay Dale CPSM055R000JE31

Manufacturer No:
CPSM055R000JE31
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
CPSM055R000JE31 Datasheet
ECAD Model:
-
Description:
RES SMD 5 OHM 5% 5W
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:5 Ohms
Tolerance:±5%
Power (Watts):5W
Composition:Wirewound
Features:Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient:±400ppm/°C
Operating Temperature:-65°C ~ 275°C
Package / Case:2-SMD, No Lead
Supplier Device Package:2-SMD
Ratings:-
Size / Dimension:1.060" L x 0.374" W (26.92mm x 9.50mm)
Height - Seated (Max):-
Number of Terminations:2
Failure Rate:-
0 Remaining View Similar

In Stock

-
128

Please send RFQ , we will respond immediately.

Similar Products

Part Number CPSM055R000JE31 CPSM055R100JE31   CPSM052R000JE31   CPSM054R000JE31
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete
Resistance 5 Ohms 5.1 Ohms 2 Ohms 4 Ohms
Tolerance ±5% ±5% ±5% ±5%
Power (Watts) 5W 5W 5W 5W
Composition Wirewound Wirewound Wirewound Wirewound
Features Flame Proof, Pulse Withstanding, Safety Flame Proof, Pulse Withstanding, Safety Flame Proof, Pulse Withstanding, Safety Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±400ppm/°C ±400ppm/°C ±400ppm/°C ±400ppm/°C
Operating Temperature -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C
Package / Case 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead 2-SMD, No Lead
Supplier Device Package 2-SMD 2-SMD 2-SMD 2-SMD
Ratings - - - -
Size / Dimension 1.060" L x 0.374" W (26.92mm x 9.50mm) 1.060" L x 0.374" W (26.92mm x 9.50mm) 1.060" L x 0.374" W (26.92mm x 9.50mm) 1.060" L x 0.374" W (26.92mm x 9.50mm)
Height - Seated (Max) - - - -
Number of Terminations 2 2 2 2
Failure Rate - - - -
