Please send RFQ , we will respond immediately.

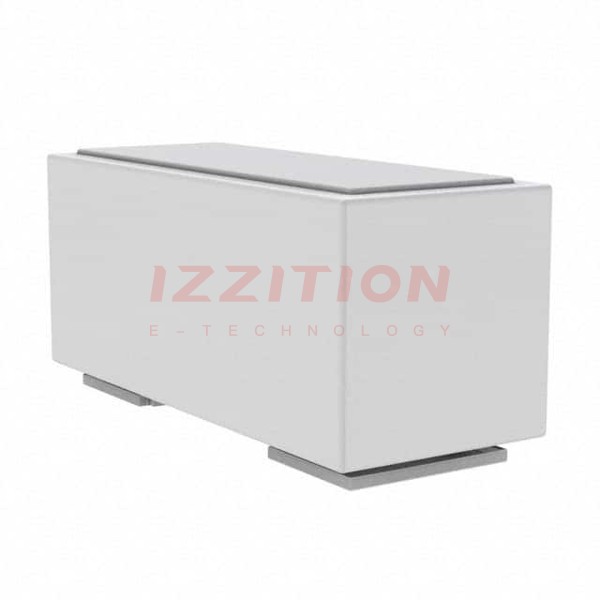

| Part Number | CPSM0512R00JE31 | CPSM0515R00JE31 | CPSM0516R00JE31 | CPSM0522R00JE31 | CPSM0510R00JE31 | CPSM0511R00JE31 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 12 Ohms | 15 Ohms | 16 Ohms | 22 Ohms | 10 Ohms | 11 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Flame Proof, Pulse Withstanding, Safety | Flame Proof, Pulse Withstanding, Safety | Flame Proof, Pulse Withstanding, Safety | Flame Proof, Pulse Withstanding, Safety | Flame Proof, Pulse Withstanding, Safety | Flame Proof, Pulse Withstanding, Safety |
| Temperature Coefficient | ±400ppm/°C | ±400ppm/°C | ±400ppm/°C | ±400ppm/°C | ±400ppm/°C | ±400ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD | 2-SMD |
| Ratings | - | - | - | - | - | - |
| Size / Dimension | 1.060" L x 0.374" W (26.92mm x 9.50mm) | 1.060" L x 0.374" W (26.92mm x 9.50mm) | 1.060" L x 0.374" W (26.92mm x 9.50mm) | 1.060" L x 0.374" W (26.92mm x 9.50mm) | 1.060" L x 0.374" W (26.92mm x 9.50mm) | 1.060" L x 0.374" W (26.92mm x 9.50mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - |
