CPSL03R0700JB143
  • Share:

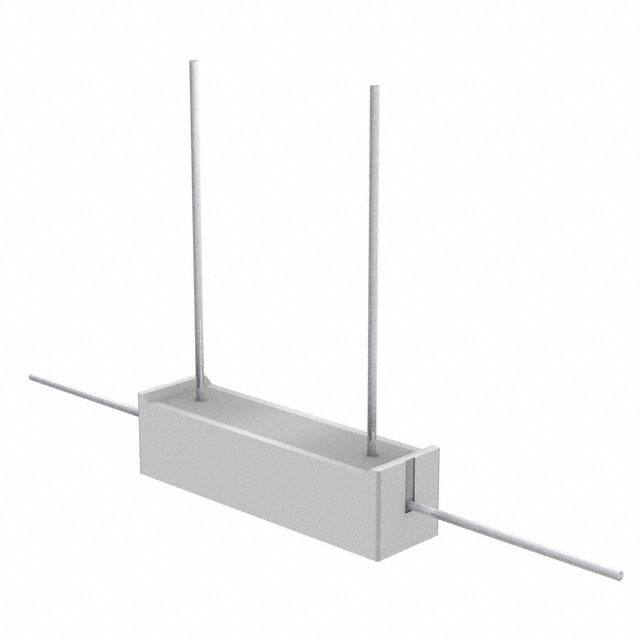

Vishay Dale CPSL03R0700JB143

Manufacturer No:
CPSL03R0700JB143
Manufacturer:
Vishay Dale
Package:
Bulk
Datasheet:
CPSL03R0700JB143 Datasheet
ECAD Model:
-
Description:
RES 0.07 OHM 3W 5% 4LEAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Resistance:70 mOhms
Tolerance:±5%
Power (Watts):3W
Composition:Wirewound
Features:Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient:±100ppm/°C
Operating Temperature:-65°C ~ 275°C
Package / Case:Axial, Radial
Supplier Device Package:-
Size / Dimension:0.875" L x 0.313" W (22.22mm x 7.94mm)
Height - Seated (Max):-
Number of Terminations:4
Failure Rate:-
0 Remaining View Similar

In Stock

-
11

Please send RFQ , we will respond immediately.

Similar Products

Part Number CPSL03R0700JB143 CPSL03R0100JB143   CPSL03R0200JB143   CPSL03R0500JB143
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Obsolete Obsolete Obsolete Obsolete
Resistance 70 mOhms 10 mOhms 20 mOhms 50 mOhms
Tolerance ±5% ±5% ±5% ±5%
Power (Watts) 3W 3W 3W 3W
Composition Wirewound Wirewound Wirewound Wirewound
Features Current Sense, Flame Proof, Pulse Withstanding, Safety Current Sense, Flame Proof, Pulse Withstanding, Safety Current Sense, Flame Proof, Pulse Withstanding, Safety Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±100ppm/°C ±100ppm/°C ±100ppm/°C ±100ppm/°C
Operating Temperature -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C -65°C ~ 275°C
Package / Case Axial, Radial Axial, Radial Axial, Radial Axial, Radial
Supplier Device Package - - - -
Size / Dimension 0.875" L x 0.313" W (22.22mm x 7.94mm) 0.875" L x 0.313" W (22.22mm x 7.94mm) 0.875" L x 0.313" W (22.22mm x 7.94mm) 0.875" L x 0.313" W (22.22mm x 7.94mm)
Height - Seated (Max) - - - -
Number of Terminations 4 4 4 4
Failure Rate - - - -
