Please send RFQ , we will respond immediately.

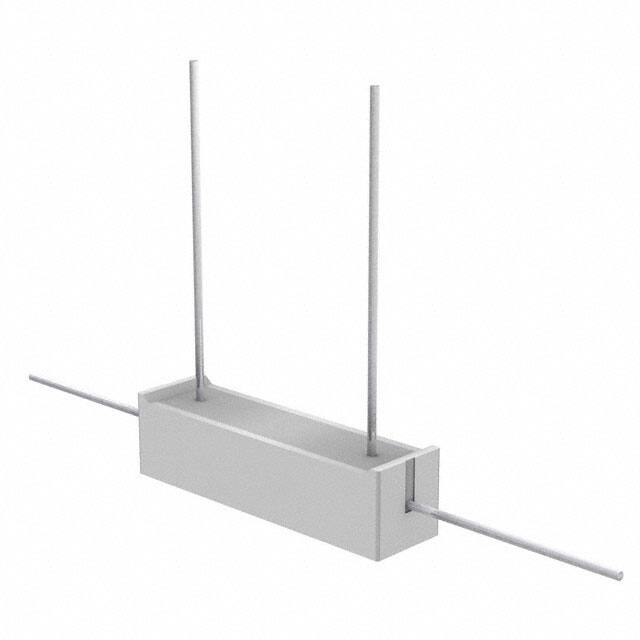

| Part Number | CPSL03R0200JB143 | CPSL03R0500JB143 | CPSL03R0700JB143 | CPSL05R0200JB143 | CPSL03R0100JB143 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Resistance | 20 mOhms | 50 mOhms | 70 mOhms | 20 mOhms | 10 mOhms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Power (Watts) | 3W | 3W | 3W | 5W | 3W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Current Sense, Flame Proof, Pulse Withstanding, Safety | Current Sense, Flame Proof, Pulse Withstanding, Safety | Current Sense, Flame Proof, Pulse Withstanding, Safety | Current Sense, Flame Proof, Pulse Withstanding, Safety | Current Sense, Flame Proof, Pulse Withstanding, Safety |
| Temperature Coefficient | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C | ±100ppm/°C |
| Operating Temperature | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C | -65°C ~ 275°C |
| Package / Case | Axial, Radial | Axial, Radial | Axial, Radial | Axial, Radial | Axial, Radial |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.875" L x 0.313" W (22.22mm x 7.94mm) | 0.875" L x 0.313" W (22.22mm x 7.94mm) | 0.875" L x 0.313" W (22.22mm x 7.94mm) | 0.875" L x 0.375" W (22.22mm x 9.52mm) | 0.875" L x 0.313" W (22.22mm x 7.94mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Number of Terminations | 4 | 4 | 4 | 4 | 4 |
| Failure Rate | - | - | - | - | - |
