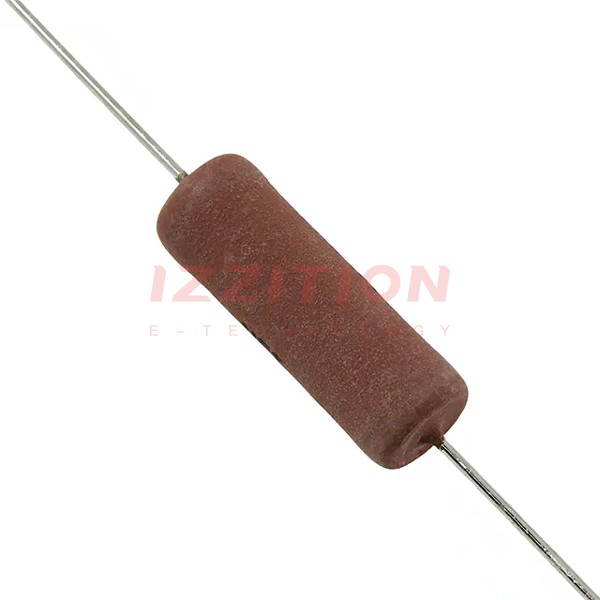

| Part Number | ALSR0520R00JE12 | ALSR0540R00JE12 | ALSR0550R00JE12 | ALSR0525R00JE12 | ALSR0522R00JE12 | ALSR0527R00JE12 | ALSR0530R00JE12 | ALSR0510R00JE12 | ALSR0520K00JE12 | ALSR0520R00FE12 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Resistance | 20 Ohms | 40 Ohms | 50 Ohms | 25 Ohms | 22 Ohms | 27 Ohms | 30 Ohms | 10 Ohms | 20 kOhms | 20 Ohms |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±1% |
| Power (Watts) | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W | 5W |
| Composition | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Features | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant | Moisture Resistant |
| Temperature Coefficient | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C | ±30ppm/°C |
| Operating Temperature | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C | -65°C ~ 250°C |
| Package / Case | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Supplier Device Package | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial | Axial |
| Size / Dimension | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) | 0.312" Dia x 0.875" L (7.92mm x 22.23mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - | - | - |
| Number of Terminations | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Failure Rate | - | - | - | - | - | - | - | - | - | - |
