ACASN1001S1003P1AT
  • Share:

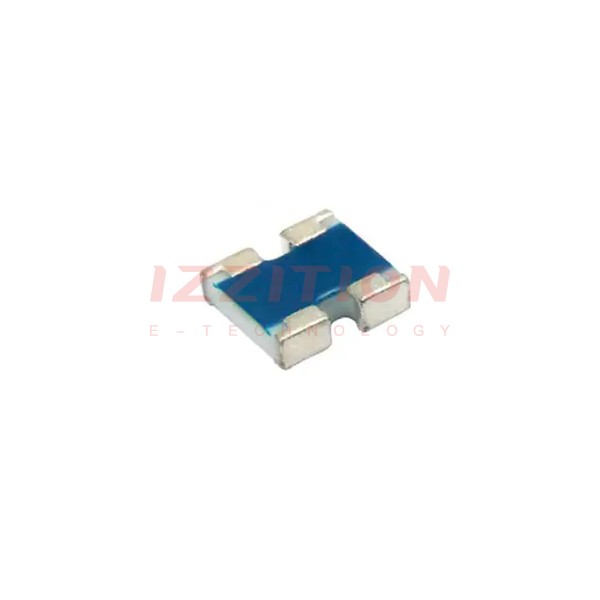

Vishay Dale ACASN1001S1003P1AT

Manufacturer No:
ACASN1001S1003P1AT
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
ACASN1001S1003P1AT Datasheet
ECAD Model:
-
Description:
ACAS 0606 1K0 S 100K AT P1
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Circuit Type:Isolated
Resistance (Ohms):1k, 100k
Tolerance:±0.1%
Number of Resistors:2
Resistor Matching Ratio:±0.05%
Resistor-Ratio-Drift:±15ppm/°C
Number of Pins:8
Power Per Element:125mW
Temperature Coefficient:±25ppm/°C
Operating Temperature:-55°C ~ 155°C
Applications:Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting Type:Surface Mount
Package / Case:0606 (1616 Metric), Convex, Long Side Terminals
Supplier Device Package:1206
Size / Dimension:0.063" L x 0.063" W (1.60mm x 1.60mm)
Height - Seated (Max):0.022" (0.55mm)
0 Remaining View Similar

In Stock

$0.73
94

Please send RFQ , we will respond immediately.

Similar Products

Part Number ACASN1001S1003P1AT ACASA1001S1003P1AT   ACASN1001S1001P1AT
Manufacturer Vishay Dale Vishay Dale Vishay Beyschlag/Draloric/BC Components
Product Status Active Active Active
Circuit Type Isolated Isolated Isolated
Resistance (Ohms) 1k, 100k 1k, 100k 1K
Tolerance ±0.1% ±0.1% ±0.1%
Number of Resistors 2 4 2
Resistor Matching Ratio ±0.05% ±0.05% ±0.05%
Resistor-Ratio-Drift ±15ppm/°C ±15ppm/°C ±15ppm/°C
Number of Pins 8 8 4
Power Per Element 125mW 125mW 125mW
Temperature Coefficient ±25ppm/°C ±25ppm/°C ±25ppm/°C
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Applications Automotive AEC-Q200, Voltage Divider (TCR Matched) Automotive AEC-Q200, Voltage Divider (TCR Matched) Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case 0606 (1616 Metric), Convex, Long Side Terminals 1206 (3216 Metric), Convex, Long Side Terminals 0606, Convex
Supplier Device Package 1206 1206 0606
Size / Dimension 0.063" L x 0.063" W (1.60mm x 1.60mm) 0.126" L x 0.059" W (3.20mm x 1.50mm) 0.063" L x 0.059" W (1.60mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm) 0.022" (0.55mm) 0.022" (0.55mm)
