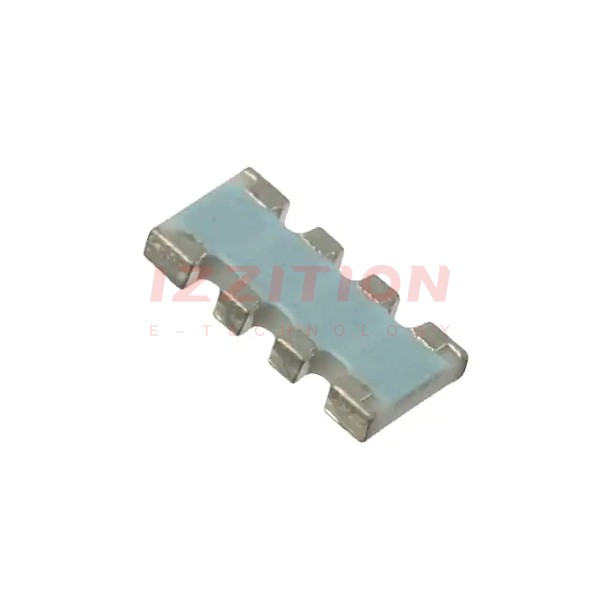

| Part Number | ACASA5000S5002P1AT | ACASN5000S5002P1AT | ACASA5002S5002P1AT |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Beyschlag/Draloric/BC Components |
| Product Status | Active | Active | Active |
| Circuit Type | Isolated | Isolated | Isolated |
| Resistance (Ohms) | 500, 50k | 500, 50k | 50k |
| Tolerance | ±0.1% | ±0.1% | ±0.1% |
| Number of Resistors | 4 | 2 | 4 |
| Resistor Matching Ratio | ±0.05% | ±0.05% | ±0.05% |
| Resistor-Ratio-Drift | ±15ppm/°C | ±15ppm/°C | ±15ppm/°C |
| Number of Pins | 8 | 8 | 8 |
| Power Per Element | 125mW | 125mW | 125mW |
| Temperature Coefficient | ±25ppm/°C | ±25ppm/°C | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) | Automotive AEC-Q200, Voltage Divider (TCR Matched) | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 1206 (3216 Metric), Convex, Long Side Terminals | 0606 (1616 Metric), Convex, Long Side Terminals | 1206 (3216 Metric), Convex, Long Side Terminals |
| Supplier Device Package | 1206 | 1206 | - |
| Size / Dimension | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Height - Seated (Max) | 0.022" (0.55mm) | 0.022" (0.55mm) | 0.022" (0.55mm) |
