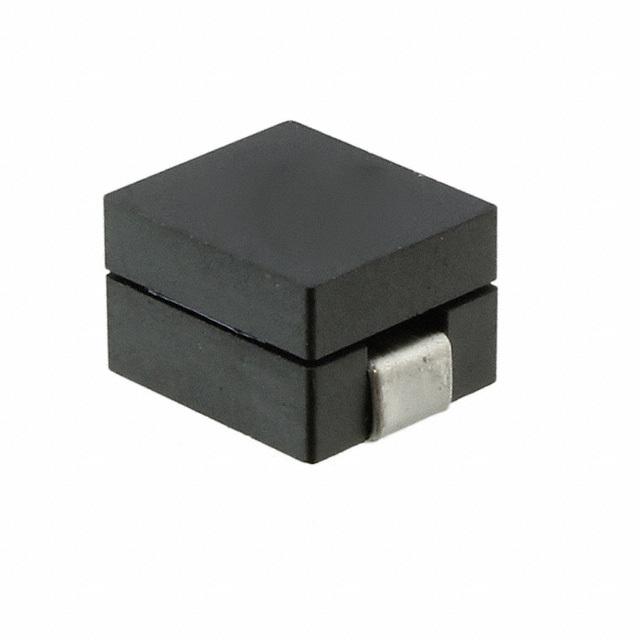

| Part Number | PI60-02-FPIZ | PI60-04-FPIZ | PI60-05-FPIZ |
|---|---|---|---|
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | - | - | - |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 80 nH | 125 nH | 150 nH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 90 A | 55 A | 40 A |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 0.5mOhm Max | 0.5mOhm Max | 0.5mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-SMD | 2-SMD | 2-SMD |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.382" L x 0.319" W (9.70mm x 8.10mm) | 0.382" L x 0.319" W (9.70mm x 8.10mm) | 0.382" L x 0.319" W (9.70mm x 8.10mm) |
| Height - Seated (Max) | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
