Vicor Corporation-PI5101-01-LGIZ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	5 V
Current - Continuous Drain (Id) @ 25°C:	60A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	3.5V, 4.5V
Rds On (Max) @ Id, Vgs:	0.45mOhm @ 60A, 4.5V
Vgs(th) (Max) @ Id:	800mV @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	65 nC @ 4.5 V
Vgs (Max):	±5V
Input Capacitance (Ciss) (Max) @ Vds:	7600 pF @ 5 V
FET Feature:	-
Power Dissipation (Max):	3.1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-LGA (4.1x8)
Package / Case:	3-FLGA

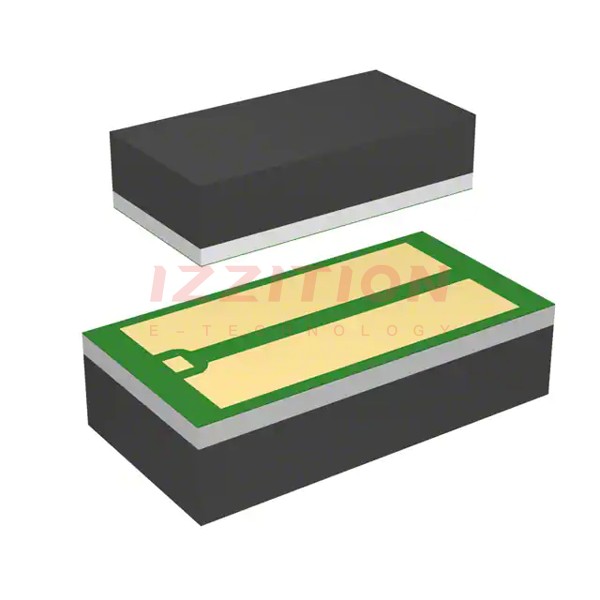

Vicor Corporation PI5101-01-LGIZ
