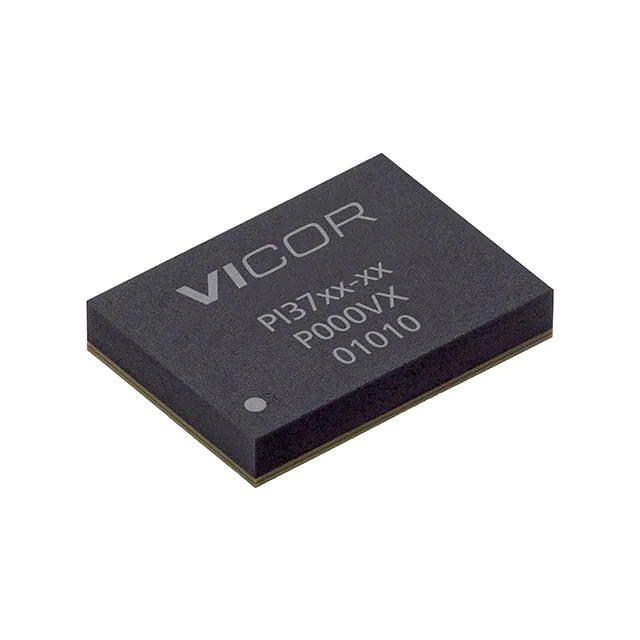

| Part Number | PI3749-00-LGIZ | PI3749-20-LGIZ | PI3740-00-LGIZ | PI3741-00-LGIZ |
|---|---|---|---|---|
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Product Status | Obsolete | Obsolete | Active | Active |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive |
| Topology | Buck-Boost | Buck-Boost | Buck-Boost | Buck-Boost |
| Output Type | Adjustable | Adjustable | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 16V | 16V | 8V | 21V |
| Voltage - Input (Max) | 34V | 34V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 12V | 12V | 10V (12V) | 21V (24V) |
| Voltage - Output (Max) | 34V | 28V | 50V | 36V |
| Current - Output | 10A | 10A | 7.42A | 6A |
| Frequency - Switching | 800kHz | 800kHz | 1MHz | 1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 115°C (TJ) | -40°C ~ 115°C (TJ) | -40°C ~ 115°C (TJ) | -40°C ~ 115°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 108-BLGA Module | 108-BLGA Module | 108-BLGA Module | 108-BLGA Module |
| Supplier Device Package | 108-LGA (14x10) | 108-LGA (14x10) | 108-LGA (14x10) | 108-LGA (14x10) |
