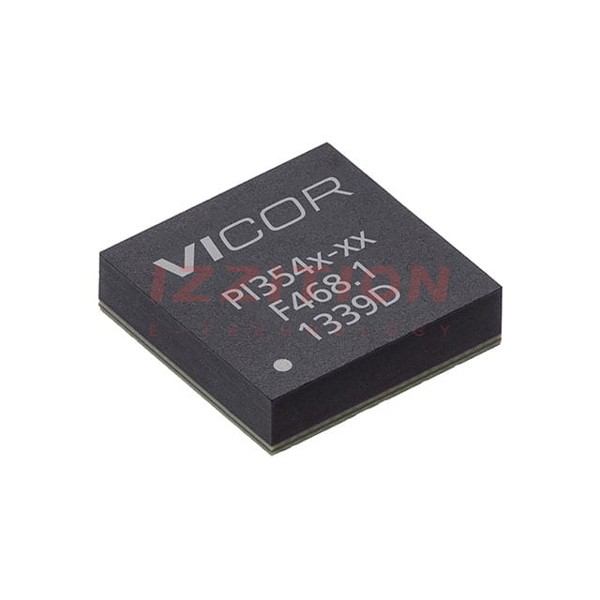

| Part Number | PI3546-00-LGIZ | PI3526-00-LGIZ | PI3542-00-LGIZ | PI3543-00-LGIZ | PI3545-00-LGIZ | PI3546-00-BGIZ |
|---|---|---|---|---|---|---|
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 36V | 30V | 36V | 36V | 36V | 36V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 60V | 60V |
| Voltage - Output (Min/Fixed) | 6.5V (12V) | 6.5V (12V) | 2.2V (2.5V) | 2.6V (3.3V) | 4V (5V) | 6.5V (12V) |
| Voltage - Output (Max) | 14V | 14V | 3V | 3.6V | 5.5V | 14V |
| Current - Output | 9A | 18A | 10A | 10A | 10A | 9A |
| Frequency - Switching | 800kHz | 700kHz | 400kHz | 400kHz | 600kHz | 800kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 120°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 85-BLGA Module | 110-BLGA Module | 85-BLGA Module | 85-BLGA Module | 85-BLGA Module | 85-BBGA Module |
| Supplier Device Package | 85-LGA (10x10) | 110-LGA (14x10) | 85-LGA (10x10) | 85-LGA (10x10) | 85-LGA (10x10) | 85-BGA (10.5x10.5) |
