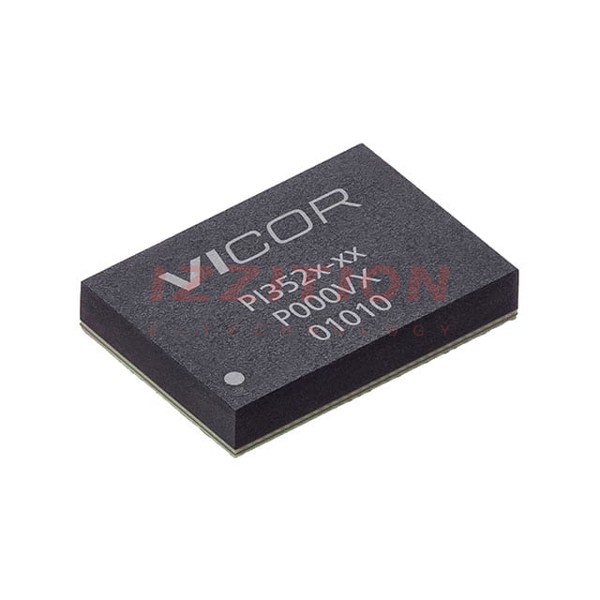

| Part Number | PI3523-00-LGIZ | PI3526-00-LGIZ | PI3525-00-LGIZ | PI3543-00-LGIZ | PI3323-00-LGIZ | PI3423-00-LGIZ |
|---|---|---|---|---|---|---|
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Product Status | Active | Active | Active | Active | Active | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck |
| Output Type | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Adjustable (Fixed) | Fixed | Adjustable (Fixed) |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Min) | 30V | 30V | 30V | 36V | 14V | 8V |
| Voltage - Input (Max) | 60V | 60V | 60V | 60V | 42V | 18V |
| Voltage - Output (Min/Fixed) | 2.2V (3.3V) | 6.5V (12V) | 4V (5V) | 2.6V (3.3V) | 3.3V | 2.3V (3.3V) |
| Voltage - Output (Max) | 4V | 14V | 6.5V | 3.6V | - | 4.1V |
| Current - Output | 22A | 18A | 20A | 10A | 22A | 15A |
| Frequency - Switching | 500kHz | 700kHz | - | 400kHz | 7MHz | 700kHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 120°C (TJ) | -40°C ~ 120°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TJ) | -40°C ~ 120°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 110-BLGA Module | 110-BLGA Module | 110-BLGA Module | 85-BLGA Module | 110-BLGA Module | 123-BLGA Module |
| Supplier Device Package | 110-LGA (14x10) | 110-LGA (14x10) | 110-LGA (14x10) | 85-LGA (10x10) | 110-LGA (14x10) | 123-LGA (14x10) |
