Vicor Corporation-PFM4914VB6M24D0C00 - AC DC Converters Product Specifications and Latest Quotes

Type:	Enclosed
Number of Outputs:	1
Voltage - Input:	85 ~ 264 VAC
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Voltage - Output 5:	-
Voltage - Output 6:	-
Current - Output 1:	16.7 A
Current - Output 2:	-
Current - Output 3:	-
Current - Output 4:	-
Current - Output 5:	-
Current - Output 6:	-
Power (Watts):	400W
Applications:	ITE (Commercial)
Voltage - Isolation:	4.242 kV
Efficiency:	92%
Operating Temperature:	-20°C ~ 100°C (With Derating)
Features:	External Rectification Required, PFC, Universal Input
Mounting Type:	Chassis Mount
Size / Dimension:	4.91" L x 1.40" W x 0.37" H (124.8mm x 35.5mm x 9.3mm)
Approval Agency:	CE, cTUVus, cURus
Standard Number:	-

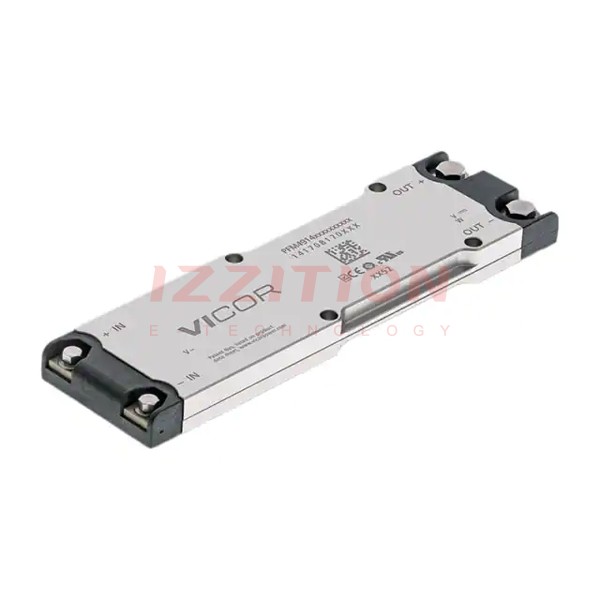

Vicor Corporation PFM4914VB6M24D0C00
