Vicor Corporation-DCM4623TD2N31C8T00 - DC DC Converters Product Specifications and Latest Quotes

Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	120V
Voltage - Input (Max):	420V
Voltage - Output 1:	28V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	13.4A
Power (Watts):	375 W
Voltage - Isolation:	4.242 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	93.9%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	1.89" L x 0.90" W x 0.29" H (47.9mm x 22.8mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

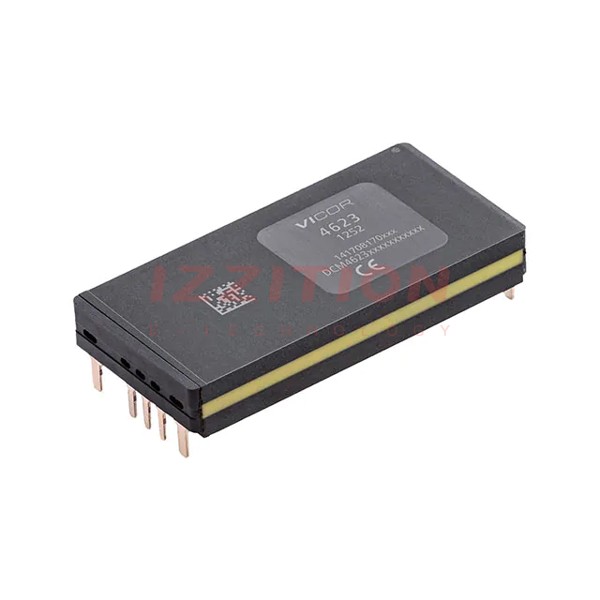

Vicor Corporation DCM4623TD2N31C8T00
