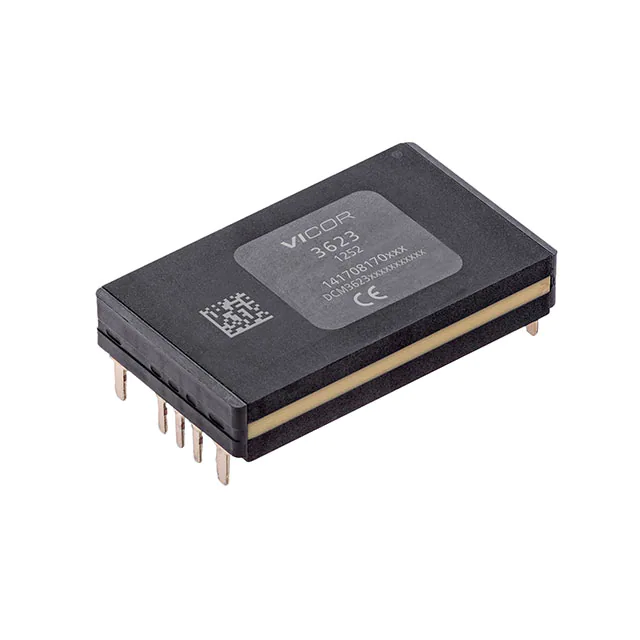

Vicor Corporation-DCM3623T50M53C2T00 - DC DC Converters Product Specifications and Latest Quotes

Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	50V
Voltage - Output 1:	48V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6.67A
Power (Watts):	320 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C (With Derating)
Efficiency:	92.6%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Vicor Corporation DCM3623T50M53C2T00
