Vicor Corporation-DCM290P138T600A40 - DC DC Converters Product Specifications and Latest Quotes

Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	160V
Voltage - Input (Max):	420V
Voltage - Output 1:	13.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	43.5A
Power (Watts):	600 W
Voltage - Isolation:	4.242 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 125°C
Efficiency:	93.6%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	1.88" L x 0.90" W x 0.29" H (47.7mm x 22.8mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

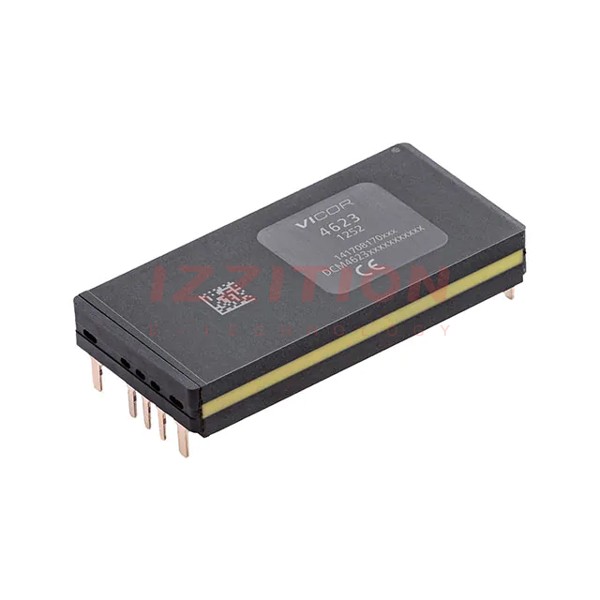

Vicor Corporation DCM290P138T600A40
