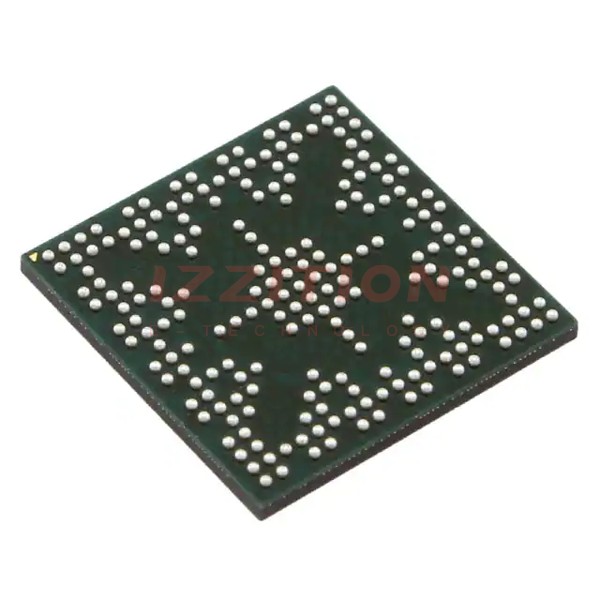

| Part Number | XM4C129DNCZADI1 | XM4C129XNCZADI1 | XM4C129ENCZADI1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M4F | ARM® Cortex®-M4F | ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, SPI, SSI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, SPI, SSI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, SPI, SSI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, LCD, POR, PWM, QEI, WDT | Brown-out Detect/Reset, DMA, POR, PWM, QEI, WDT |
| Number of I/O | 140 | 140 | 140 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 6K x 8 | 6K x 8 | 6K x 8 |
| RAM Size | 256K x 8 | 256K x 8 | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.97V ~ 3.63V |
| Data Converters | A/D 24x12b | A/D 24x12b | A/D 24x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 212-VFBGA | 212-VFBGA | 212-VFBGA |
| Supplier Device Package | 212-NFBGA (10x10) | 212-NFBGA (10x10) | 212-NFBGA (10x10) |
