Please send RFQ , we will respond immediately.
| Part Number | VCA2618YR | VCA2618YT | VCA2619YR | VCA2616YR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Amplifier Type | Variable Gain | Variable Gain | Variable Gain | Variable Gain |
| Number of Circuits | 2 | 2 | 2 | 2 |
| Output Type | Differential | Differential | Differential | Differential |
| Slew Rate | 300V/µs | 300V/µs | 300V/µs | 300V/µs |
| Gain Bandwidth Product | 100 MHz | 100 MHz | 100 MHz | 80 MHz |
| -3db Bandwidth | 30 MHz | 30 MHz | 20 MHz | 40 MHz |
| Current - Input Bias | 1 nA | 1 nA | 1 nA | 1 nA |
| Voltage - Input Offset | - | - | 50 mV | - |
| Current - Supply | - | - | - | - |
| Current - Output / Channel | 40 mA | 40 mA | 40 mA | 40 mA |
| Voltage - Supply Span (Min) | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Voltage - Supply Span (Max) | 5.25 V | 5.25 V | 5.25 V | 5.25 V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

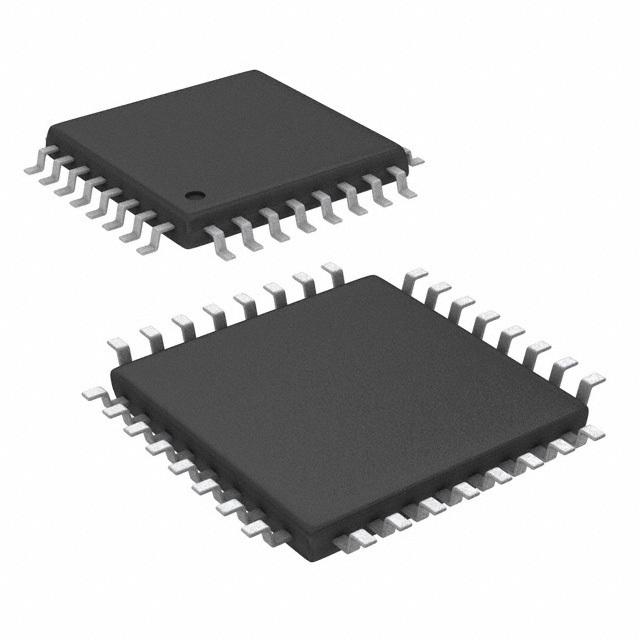

| Package / Case | 32-TQFP | 32-TQFP | 32-TQFP | 48-TQFP |
| Supplier Device Package | 32-TQFP (5x5) | 32-TQFP (5x5) | 32-TQFP (5x5) | 48-TQFP (7x7) |
