Texas Instruments-UCC5390ECQDWVRQ1 - Isolators - Gate Drivers Product Specifications and Latest Quotes

Technology:	Capacitive Coupling
Number of Channels:	1
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	120kV/µs
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Pulse Width Distortion (Max):	20ns
Rise / Fall Time (Typ):	10ns, 10ns
Current - Output High, Low:	17A, 17A
Current - Peak Output:	10A
Voltage - Forward (Vf) (Typ):	-
Current - DC Forward (If) (Max):	-
Voltage - Output Supply:	13.2V ~ 33V
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	8-SOIC
Approval Agency:	CQC, UL, VDE

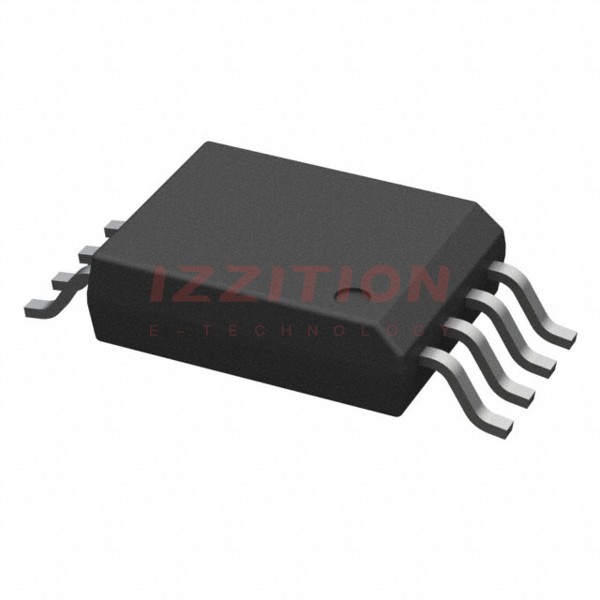

Texas Instruments UCC5390ECQDWVRQ1
