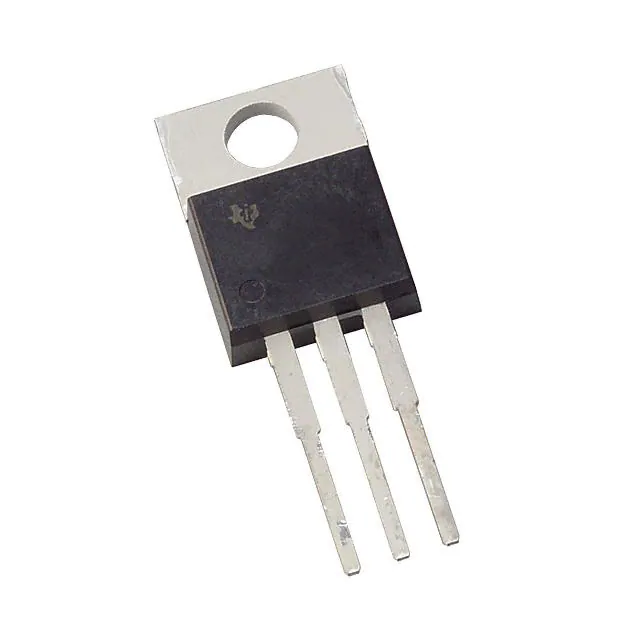

| Part Number | UCC383T-3G3 | UCC383T-5G3 | UCC283T-3G3 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 |
| Voltage - Input (Max) | 9V | 9V | 9V |
| Voltage - Output (Min/Fixed) | 3.3V | 5V | 3.3V |
| Voltage - Output (Max) | - | - | - |
| Voltage Dropout (Max) | 1V @ 3A | 6V @ 3A | 1V @ 3A |
| Current - Output | 3A | 3A | 3A |
| Current - Quiescent (Iq) | 650 µA | 650 µA | 650 µA |
| Current - Supply (Max) | - | - | - |
| PSRR | - | - | - |
| Control Features | - | - | - |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) | Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 |
