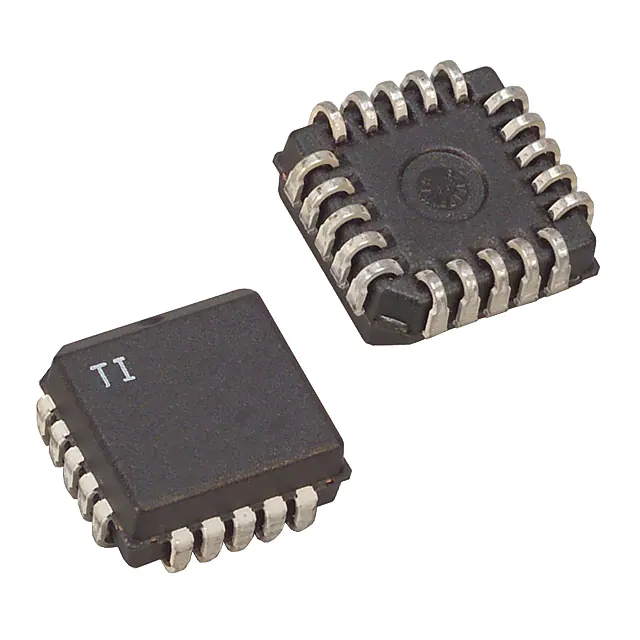

| Part Number | UCC3806Q | UCC3806N |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Buck, Boost, Flyback, Forward Converter | Buck, Boost, Flyback, Forward Converter |
| Number of Outputs | 2 | 2 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 14.5V | 8V ~ 14.5V |
| Frequency - Switching | 47kHz | 47kHz |
| Duty Cycle (Max) | 50% | 50% |
| Synchronous Rectifier | Yes | Yes |
| Clock Sync | No | No |
| Serial Interfaces | - | - |
| Control Features | Current Limit, Enable, Frequency Control | Current Limit, Enable, Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount | Through Hole |
| Package / Case | 20-LCC (J-Lead) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PLCC (9x9) | 16-PDIP |
