| Part Number | UCC2897RTJT | UCC2897RTJR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Not For New Designs | Not For New Designs |
| Output Type | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable | Positive, Isolation Capable |
| Topology | Flyback, Forward Converter | Flyback, Forward Converter |
| Number of Outputs | 1 | 1 |
| Output Phases | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14.5V | 8.5V ~ 14.5V |
| Frequency - Switching | 250kHz | 250kHz |
| Duty Cycle (Max) | 74% | 74% |
| Synchronous Rectifier | Yes | Yes |
| Clock Sync | Yes | Yes |
| Serial Interfaces | - | - |
| Control Features | Enable, On Time Control, Soft Start | Enable, On Time Control, Soft Start |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

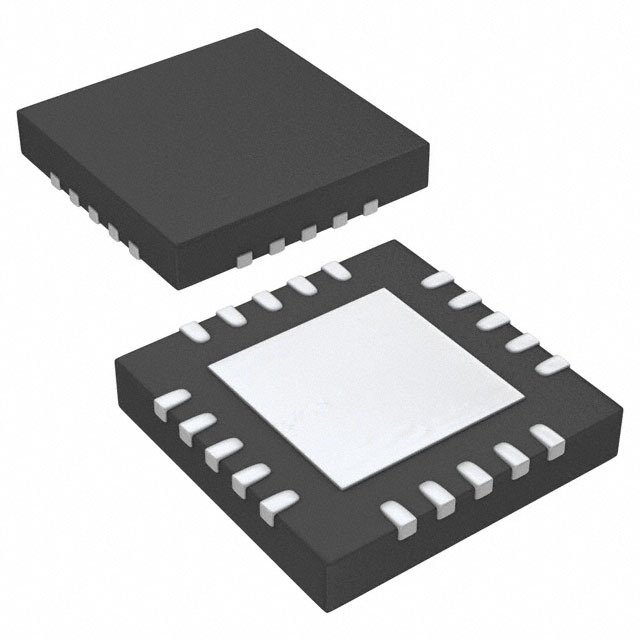

| Package / Case | 20-WFQFN Exposed Pad | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) | 20-QFN (4x4) |
