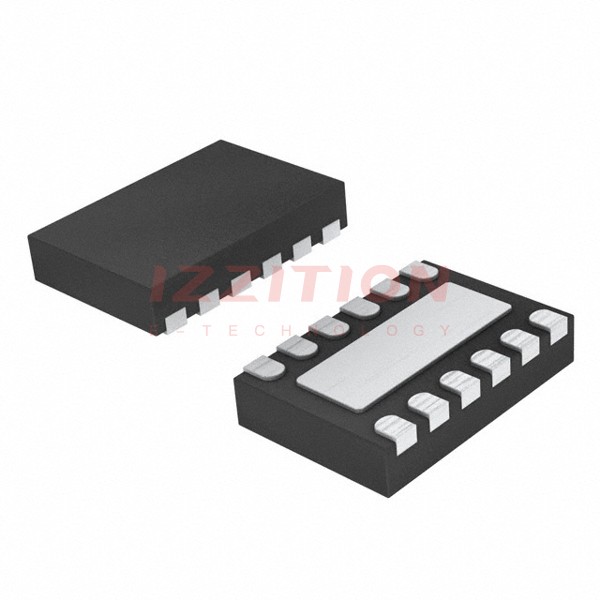

| Part Number | UCC28230DRNR | UCC28230DRNT | UCC28231DRNR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Output Type | Transistor Driver | Transistor Driver | Transistor Driver |
| Function | Step-Up/Step-Down | Step-Up/Step-Down | Step-Up/Step-Down |
| Output Configuration | Positive | Positive | Positive |
| Topology | Full-Bridge, Half-Bridge, Push-Pull | Full-Bridge, Half-Bridge, Push-Pull | Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 4 | 4 | 4 |
| Output Phases | 1 | 1 | 1 |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 17V | 7V ~ 17V | 7V ~ 17V |
| Frequency - Switching | 100kHz ~ 550kHz | 100kHz ~ 550kHz | 100kHz ~ 550kHz |
| Duty Cycle (Max) | - | - | - |
| Synchronous Rectifier | No | No | No |
| Clock Sync | No | No | No |
| Serial Interfaces | - | - | - |
| Control Features | Frequency Control, Soft Start | Frequency Control, Soft Start | Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad | 12-UFDFN Exposed Pad | 12-UFDFN Exposed Pad |
| Supplier Device Package | 12-USON (3x2) | 12-USON (3x2) | 12-USON (3x2) |
